Heavy Duty Curved Conveyor Section

2" unplated rollers, multiple widths

gravity roller conveyor
  • 2" unplated rollers
  • 7/16" axles for added strength and capacity
  • Bolt-on couplings for connecting multiple sections
  • 3.5" deep x 1.5" flange bolt-in cross members


Model No. Overall Width Price
20SRC-13-90S 16" $308.45
20SRC-15-90S 18" $325.69
20SRC-17-90S 20" $342.92
20SRC-19-90S 22" $360.16
20SRC-21-90S 24" $377.40
20SRC-23-90D 26" $520.91
20SRC-25-90D 28" $533.97
20SRC-27-90D 30" $546.92
20SRC-31-90D 34" $661.78
20SRC-33-90D 36" $678.81
20SRC-37-90D 40" $712.88
20SRC-39-90D 42" $729.91

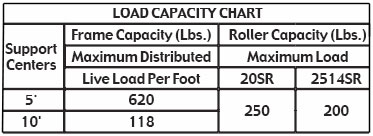

Length & Supports

Roller conveyor is available in 5 foot and 10 foot lengths for straight sections.  The length of the conveyor along with the number of supports underneath greatly determine its load capacity.  In most applications, supports should be placed in either 5 or 10 feet intervals depending on the weight of the product you are conveying.  By installing a support every 5 feet, capacity of that section increases greatly; keep in mind though that no matter how close together you place supports, the roller axles themselves also have a capacity that should not be exceeded.
