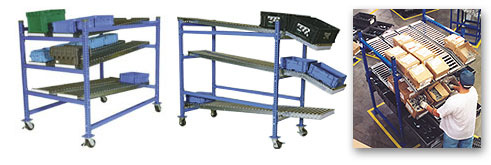

Mobile Carton Flow Racks

A portable, versatile carton flow rack system

Mobile gravity flow racks let you use and transport carton flow workstations on the fly. Because these workstations let you make the most of inaccessible rack space, they're ideal for kitting, picking, or assembly applications.



Model No. Shelves Lanes Dimensions Price
FC4-24-48-3 3 2 24"w x 48"d x 54"h $911.40
FC4-24-60-3 3 2 24"w x 60"d x 54"h $974.01
FC4-24-72-3 3 2 24"w x 72"d x 54"h $1,062.73
FC4-36-48-3 3 3 36"w x 48"d x 54"h $1,099.96
FC4-36-60-3 3 3 36"w x 60"d x 54"h $1,184.11
FC4-36-72-3 3 3 36"w x 72"d x 54"h $1,301.60
FC4-48-48-3 3 4 48"w x 48"d x 54"h $1,288.72
FC4-48-60-48 3 4 48"w x 60"d x 54"h $1,394.43
FC4-48-72-3 3 4 48"w x 72"d x 54"h $1,540.66

Use mobile flow racks in conjunction with an assembly conveyor line, a workbench, a carousel, or picking operation. Since are easily transported, the racks are great for put away and inventory replenishment. “Mix & match” components make it easy to create ergonomic stations ideal for picking, assembly or line side storage. Posts & beams create the flow rack structure, so you can design customized configurations of flow storage.



Specifications

  • All flow racks have 3 shelf levels with 2, 3 or 4 lanes per shelf.

  • Posts: Vertical. 4 (minimum) per cell. Punched 1” o.c. Available 3' –7' in 6” increments. Posts ship with foot plate.

  • Casters: Locking casters are 4” diameter–rigid or swivel. You can roll it into place and lock the rack in position for safe operation.

  • Beams: Horizontal. Front, back & side beams are interchangeable. Other sizes are available 1'–6' in 6” increments. Beams ship with end plates ready to bolt to posts.

  • Tracks: These racks utilize Deck Type Span Track flow lanes for easy hand assembly. Low and high profile tracks can be intermixed in a single cell for specialized applications. Contact us for assistance.

Optional Accessories (contact us for assistance)

  • Galvanized steel workbench: Available 12” or 18” deep. Sized to match cell width. Contact us for assistance.

  • On-Pick Tray: Angles product 30° toward picker to maximize view and access. Available 12” or 15” deep. Sized to match cell width.

  • Overhead tool bar: Roll formed strut channel. Attach tools, lighting and accessories. Sized to match cell width.
