LoginThree Wall Wire Partitions & Security Cages
Perfect to nest into a corner to create secure storage
Quote/Configuration: for customized or nonstandard 3-sided partitions.
Click on the model number for additional details and ordering information

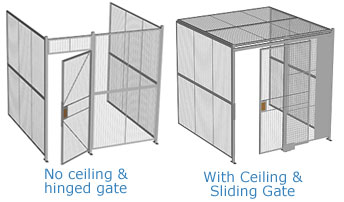

| No Ceiling | With Ceiling | ||||||
| Height | Length | Width | Gate | Model No. | Price | Model No. | Price |
| 8'5-1/4" | 5'4" | 5'4" | 3' Hinged | 3W558 | $832.58 | 3W558-C | $978.08 |
| 8'5-1/4" | 6'4" | 6'4" | 3' Hinged | 3W668 | $868.28 | 3W668-C | $1,132.28 |
| 8'5-1/4" | 7'4" | 7'4" | 3' Hinged | 3W778 | $920.55 | 3W778-C | $1,229.55 |
| 8'5-1/4" | 8'4" | 8'2" | 3' Hinged | RW-66106 | $1,048.05 | RW-66166 | $1,292.85 |
| 8'5-1/4" | 8'4" | 8'2" | 4' Sliding | RW-66100 | $1,048.05 | RW-66160 | $1,292.85 |
| 8'5-1/4" | 8'4" | 8'4" | 3' Hinged | 3W888 | $971.55 | 3W888-C | $1,304.55 |
| 8'5-1/4" | 9'4" | 9'4" | 3' Hinged | 3W998 | $1,016.18 | 3W998-C | $1,350.68 |
| 8'5-1/4" | 10'4" | 10'2" | 5' Sliding | RW-66040 | $1,198.50 | RW-66050 | $1,544.02 |
| 8'5-1/4" | 12'6" | 8'2" | 3' Hinged | RW-66107 | $1,368.08 | RW-66167 | $1,721.25 |
| 8'5-1/4" | 12'6" | 8'2" | 4' Sliding | RW-66101 | $1,368.08 | RW-66161 | $1,721.25 |
| 8'5-1/4" | 12'6" | 12'4" | 3' Hinged | RW-66108 | $1,429.28 | RW-66168 | $2,011.34 |
| 8'5-1/4" | 12'6" | 12'4" | 4' Sliding | RW-66102 | $1,429.28 | RW-66162 | $2,011.34 |
| 8'5-1/4" | 16'6" | 8'2" | 3' Hinged | RW-66109 | $1,484.10 | RW-66169 | $1,948.20 |
| 8'5-1/4" | 16'6" | 8'2" | 4' Sliding | RW-66103 | $1,484.10 | RW-66163 | $1,948.20 |
| 8'5-1/4" | 16'6" | 12'4" | 3' Hinged | RW-66110 | $1,542.75 | RW-66170 | $2,222.93 |
| 8'5-1/4" | 16'6" | 12'4" | 4' Sliding | RW-66104 | $1,542.75 | RW-66164 | $2,222.93 |
| 8'5-1/4" | 16'6" | 16'4" | 3' Hinged | RW-66111 | $1,709.78 | RW-66171 | $2,764.35 |
| 8'5-1/4" | 16'6" | 16'4" | 4' Sliding | RW-66105 | $1,709.78 | RW-66165 | $2,764.35 |
| 8'5-1/4" | 20'6" | 10'2" | 5' Sliding | RW-66041 | $1,741.65 | RW-66051 | $2,313.79 |
| 8'5-1/4" | 20'6" | 15'4" | 5' Sliding | RW-66042 | $1,836.00 | RW-66052 | $2,857.70 |
| 8'5-1/4" | 20'6" | 20'4" | 5' Sliding | RW-66043 | $1,977.74 | RW-66053 | $3,348.09 |
| 8'5-1/4" | 30'8" | 20'4" | 5' Sliding | RW-66044 | $2,511.69 | RW-66054 | $4,640.03 |
| 10'5-1/4" | 5'4" | 5'4" | 3' Hinged | 3W5510 | $933.30 | 3W5510-C | $1,078.80 |
| 10'5-1/4" | 6'4" | 6'4" | 3' Hinged | 3W6610 | $969.00 | 3W6610-C | $1,233.00 |
| 10'5-1/4" | 7'4" | 7'4" | 3' Hinged | 3W7710 | $1,026.38 | 3W7710-C | $1,335.38 |
| 10'5-1/4" | 8'4" | 8'4" | 3' Hinged | 3W8810 | $1,107.98 | 3W8810-C | $1,440.98 |
| 10'5-1/4" | 9'4" | 9'4" | 3' Hinged | 3W9910 | $1,147.50 | 3W9910-C | $1,482.00 |
| 10'5-1/4" | 10'4" | 10'2" | 5' Sliding | RW-66045 | $1,399.95 | RW-66055 | $1,742.92 |
| 10'5-1/4" | 20'6" | 10'2" | 5' Sliding | RW-66046 | $1,964.05 | RW-66056 | $2,576.41 |
| 10'5-1/4" | 20'6" | 15'4" | 5' Sliding | RW-66047 | $2,057.39 | RW-66057 | $3,122.81 |
| 10'5-1/4" | 20'6" | 20'4" | 5' Sliding | RW-66048 | $2,280.19 | RW-66058 | $3,656.76 |
| 10'5-1/4" | 30'6" | 20'4" | 5' Sliding | RW-66049 | $2,878.86 | RW-66059 | $5,047.03 |
Three-Wall Partition System Details
Three-Wall Partitions are designed to fit against a single building wall, providing a secure area utilizing one building walls and three wire mesh walls.
Facility Wall & Floor Considerations
WALLS: Your facility wall must be able to accommodate wall or ceiling panels to utilize a 3-sided partition without at-wall post connections.
Posts at the wall are recommended for: Dry wall, gypsum, or metal walls.
Panels may connect directly to: masonry, block, and some wood walls.
Adding posts at the wall will increase the price of your partition. If you are not sure of your needs, Customer Service can assist you.
FLOORS: Partitions are designed to be anchored into a concrete floor. If your floor is uneven, or a surface that cannot hold anchors, contact us. Partitions can be installed on most any floor that can bear their weight, but there may be considerations with various floor surfaces. Contact us for assistance.
Seismic Zones
Special footplates may be required for certain seismic zone areas. If you are in one of these areas, please let us know so we can configure your partition correctly. This may result in a pricing adjustment.
For assistance specifying your wire partition system, contact customer service toll-free. For quote assistance on a 3-wall partition, submit this easy-to-use Quote/Configuration form.
