Width

Belt conveyor width is measured in two ways; overall width (or bed width) and belt width.  Overall width includes the width of the frame, which is 1-1/2" on either side of the belt.  This means that the belt width would be 3" less than the overall width of the conveyor.  Keep this in mind when determining what width of conveyor you need to meet your package requirements.

Shipping

Conveyor is crated and shipped in 5ft and 10ft sections, depending on the overall length of the conveyor, and will need to be bolted together on-site.  The drive assembly, reducer, and motor will shipped attached to one of these sections.  Because these sections are unattached for shipping, the conveyor belt itself will also have to be attached onsite.

Please note that this conveyor DOES NOT include electrical components or switches.

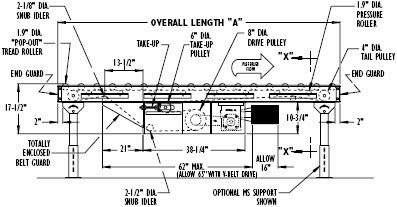

Drawings & Capacity (More specs below)

Standard Specifications

• Belt – Ultimate 140 SD–Nitrile.
• Bed – Roller bed with 1.9 in. dia. roller x 16 ga. galvanized tube spaced every 3 in. and 1.9 in. dia. pressure roller x 16 ga. galvanized tube spaced every 6 in. Mounted in 6-1/2 in. x 12 ga. powder painted formed steel channel frame bolted together with butt couplings.
• Cross Bracing - Rods with turnbuckles are fastened to underside of bed to provide proper alignment of bed rollers and insure correct product tracking. Supplied on every other section, 30 ft. lengths and over.
• Center Drive - Can be placed in any section of conveyor length.
• Drive Shaft – 8 in. dia. with 1-7/16 in. dia. shaft at bearings, fully lagged.
• Drive Pulley – 8 in. dia. with 1-7/16 in. dia. shaft at bearings, fully lagged.
• Tail Pulley – 4 in. dia. with 1 in. dia. shaft at bearings, machine crowned.
• Take Up Pulley – 4 in. dia. with 1 in. dia. shaft at bearings, machine crowned.
• Bearings – Sealed, pre-lubricated, self-aligning, ball bearings with eccentric lock collar on drive shaft. Pre-lubricated ball bearings in tread rollers.
• Speed Reduction – Sealed worm gear C-Face speed reducer. No. 50 roller chain to drive shaft.
• Snub Idler – Adjustable 2-1/8 in. dia. pre-lubricated ball bearings.
• Return Idler – Adjustable 1.9 in. dia. pre-lubricated ball bearings.
• Motor – 1/2 HP–208/230/460/575V–3 Ph.–60 Hz. Totally Enclosed C-Face.
• Speed – Constant 65 FPM.

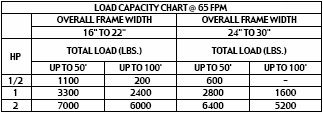

• Capacity – Maximum load per linear foot of conveyor 200 lbs. NOT TO EXCEED capacity in chart.
