40 Series Industrial Casters

Capacities to 800 lbs.

• 40 Series Casters Online Catalog: Pricing, Dimensions, Details

Select Desired Caster Size
4" x 1.5"	5" x 1.5"

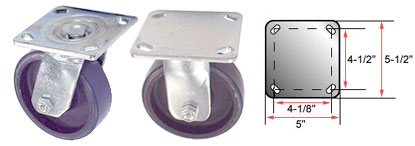

40 Series casters come in heights of 5-5/8" or 6-1/8" with a variety of available wheels. They can be fitted as needed with swivel locks, brakes, or other accessories to fit your application. 40 Series casters can be used in a number of industrial applications.

Caster Shipping Information:

Typical Ship Time: 2-3 days. FOB: Dallas, TX 75234. Freight Class: 65. Casters may be shipped via UPS depending on quantity and total weight. We will ship UPS when possible, but will always find the most efficient way to ship your order. NOTE: Typical ship time is time from order entry until equipment is shipped. It is not a delivery date. Contact customer service for more information.

• Full double ball bearing swivel raceways

• Hardened swivel bearing  raceways

• Kingpin diameter 5/8"

• Bright zinc plated rigs

• Mounting plate and leg thickness 1/4"

• Lube fittings for swivel bearings

• Lube fittings for all wheel roller bearings

• Axle diameter 1/2"
