Cantilever Rack Single Sided Starter - 12'H x 4'W - (12) 36" Arms 1,200 lb. Cap. ea.
Efficient, organized storage for long materials
SKU: MDSSKIT-12-4-36
Manufacturer: West Point Rack

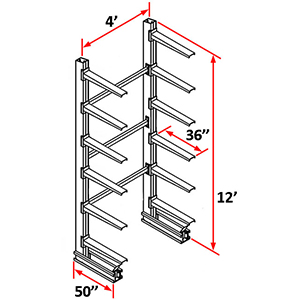

Cantilever rack from West Point Rack is an ideal storage solution for long parts and materials such as lumber, pipe, bar, and sheet stock. These materials create clutter and are difficult to handle when piled on the floor, but cantilever rack keeps them organized and accessible while making efficient use of facility space. This 12'H x 4'W all-steel starter rack features two single-sided uprights and 12 arms for a total of 6 storage levels. Each 36"L cantilever arm, adjustable in 3" increments, supports 1,200 lbs. of load; maximum capacity per upright is 7,200 lbs. Use this rack starter as a standalone unit or attach one or more adder units to create a row of cantilever rack. Item ships knocked down for lower freight costs and includes all hardware needed for assembly.
$3,315.13
Combine Your Purchase With
- H x W: 12' x 4'
- Arm Length: 36"
- Arm Cap.: 1,200 lbs.
- Arm Levels: 6
- Unit Type: Single Starter
- Upright Cap.: 7,200 lbs.
- Total # Arms: 12
- Arm Style: Straight, retention lip optional
- Base Length: 50"
- Nominal Rack Width: 4' (column center to column center)
- Bracing Style: 3 horizontal braces
- Standard Finish: Gray enamel
- Weight: 792.0 lbs. ea.
FRONT VIEW
SIDE VIEW
ARM SIDE VIEW
Click on the thumbnails to see a larger image below.
 |  |  |  |  |  |  |
Cantilever rack with the standard gray enamel finish; this one has been mounted on casters
Kit Components - West Point Rack Medium Duty Cantilever
- (2) x Part # SS1250 : 12'H single sided upright with 50" base & 8,000 lbs. maximum capacity (7,200 lbs. as configured)
- (12) x Part # ISA36 (ISA36L if lips are selected) : 36"L straight arm with 1,200 lbs. capacity
- (1) x Part # B348 : 3 horizontal braces
- Nuts and bolts required for assembly
Options
- Incline arms in place of straight arms
- Bolt-on pipe sockets for rack base and arm ends; sockets accommodate 3/8" retention pipe
- Drop-in deck support saddles
- Overhead canopy supports for outdoor storage
- Custom colors
If you require any of these options, or if you need a rack size or configuration you do not see on our website, contact us for assistance.
- Medium Duty Cantilever Specifications (979 KB PDF - opens in new window)
- All West Point Cantilever Components (1.61 MB PDF - opens in new window)
- Cantilever Rack Assembly Guide (1.11 MB PDF - opens in new window)
Lead Time: 3 to 4 weeks + transit time
Weight: 792.0 lbs. ea.
