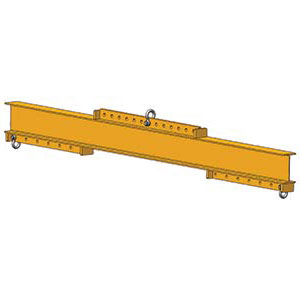

Universal Lifting-Spreader Beams
Multiple attachment points for adjusting the spread and balancing the lift
Get Quote- This adaptable below-the-hook device can be used as a lifting beam when headroom is limited, or a spreader beam when there is more room to work with and greater stability is required
- Constructed with an I-beam design, it includes several upper and lower lift points, one upper shackle (adjustable for centered or off-center loads), and two lower shackles that can be positioned in multiple spreads
- Upper rigging for using the beam as a spreader not included; can be supplied upon request
- The universal beam is manufactured with a 3:1 safety factor and expected service life of 100,001 to 500,000 lifts
Swipe to view full table
| Model No. | Capacity (Tons) | Max Spread | Min Spread | Headroom | Bail Adjustment | Price | ||
|---|---|---|---|---|---|---|---|---|
| HUNVB-1-6 | 1 | 6' | 3' | 11" | 24" | 24" | ||
| HUNVB-1-8 | 1 | 8' | 4' | 12" | 32" | 32" | ||
| HUNVB-1-10 | 1 | 10' | 5' | 12" | 40" | 40" | ||
| HUNVB-2-6 | 2 | 6' | 3' | 14" | 24" | 24" | ||
| HUNVB-2-8 | 2 | 8' | 4' | 15" | 32" | 32" | ||
| HUNVB-2-10 | 2 | 10' | 5' | 16" | 40" | 40" | ||
| HUNVB-4-8 | 4 | 8' | 4' | 18" | 32" | 32" | ||
| HUNVB-4-10 | 4 | 10' | 5' | 20" | 40" | 40" | ||
| HUNVB-4-12 | 4 | 12' | 6' | 20" | 48" | 48" | ||
| HUNVB-5-8 | 5 | 8' | 4' | 20" | 32" | 32" | ||
| HUNVB-5-10 | 5 | 10' | 5' | 21" | 40" | 40" | ||
| HUNVB-5-12 | 5 | 12' | 6' | 21" | 48" | 48" | ||
| HUNVB-7-12 | 7 | 12' | 6' | 25" | 48" | 48" |
