Mobile Aisle Shelving System, 264"L x 96"W - Drawers & Shelves

Click on the thumbnails to see a larger image below.

516

Loading...

A mobile aisle system combines the benefits of high-density storage with minimal space usage by reducing the number of access aisles needed. By nearly doubling your storage in a smaller footprint, more floor space is opened up for other activities. Additionally, parts and supply retrieval is enhanced with fewer steps taken and the flexibility of V-Grip shelving, modular drawer components, and bulk rack.

Mobile carriages make your shelving rows movable using a track and platform system on which the carriages travel. Simply grab the module handhold and pull to a new position for easy access to interior shelving rows. Easily move up to 1000 lbs. per linear foot in each carriage unit.

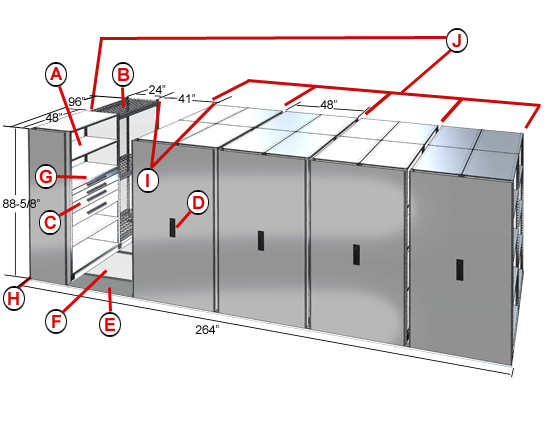

The system shown consists of a total of 1056 cubic feet of storage space in a physical foot print of 169 square feet. Each system is based on a modular plan for easy assembly for initial installation as well as future reconfiguration and expansion. The modular platform allows re-leveling of rails after installation so you are assured of easy carriage travel each and every time a shelving row is accessed.


1. Bulk rack beam available up to 96" w
2. Wire shelves provide optimum air flow and light; system shown includes one wire shelf unit
3. Modular drawers; system shown includes one each of the following heights: 3", 4.5", 6" and 7"
4. Mobile carriage manual drive handhold
5. Ramp meets ADA requirements
6. Modular platform is surface mounted; adjustable tracks
7. Solid shelving
8. Fixed row is mounted to track or to floor using raised foot brackets
9. Aisle width: 41"
10. System includes one stationary row and four mobile rows

Mobile aisle system accessories available on request:

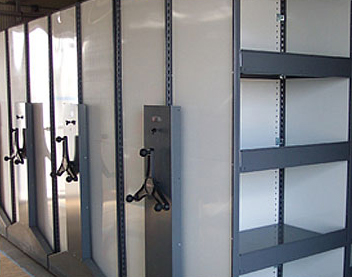

• Open/Mechanical Drive Panel to give greater access to open shelf ends
• Anti-tip brackets to stabilize shelving units
• Raised foot brackets for fixed carriages locate on the floor
• Choice of sprocket options from heavy load option to fast travel option
• Deck skirting to cover exposed end track areas
• Lock options:
• Track Base Lock to lock carriages on tracks
• MOBLock keyed panel to secure entire shelving system
• Panel Lock safety feature to lock hand wheel before entering an aisle (included on each mechanical drive panel - not keyed)

With the addition of other V-Grip components, these shelving units can be configured to exactly match your storage or parts picking needs. The special V-Grip technology used features one of the most efficient fastening principles known, minimizing deflection and adding strength and rigidity to the entire unit. Each component piece is adjustable for easy reconfiguration without unloading components above and below. Adjustments can be made in increments of 1-1/2". For more information on the V-Grip feature, please see the Shelving and Racks PDF at the documents tab.

V-Grip component options available on request:

• Heavy duty steel shelves
• Wire rack and shelving for better air and light flow
• Versa Rack shelving and shelf beams for high load capacity
• Modular drawers with or without divider sets in capacities of 200 or 400 lb loads
• Full and partial height dividers to create custom storage bins
• Bulk racking in solid or wire shelves with spans up to 8 feet and load capacities up to 3,400 lbs. per level
• V-Grip tire rack for flexible and economical tire storage
• Special clip and divider systems to create efficient bin compartments
• Bins available in sizes from 5-5/8"w x 3"h to 9"w x 9"h
• Pull out reference shelves that make convenient surfaces for writing or for parts picking totes
• Light reflective white back and end panels to give units a 'finished' look and to aid in flow of light into shelving unit
• Hinged double doors to hide objects from view and give clean look to shelving units

Market Applications:

• Manufacturing - maintenance, parts, supplies, R&D, tool rooms
• Automotive - archival records, parts departments
• Healthcare - pharmacy, maintenance, supplies, radiology
• Education - athletic equipment, maintenance, supplies
• Military - parts/supplies, maintenance, vehicle service, flight maintenance, weapon racks
• Law Enforcement - property and evidence storage, supplies, uniforms
• Retail - backroom storage, supplies
• Museum - artifact storage and security
