Hall & Door Motion Monitor 3 - Two Boxes, Two Small Lights & One Large Light
Get detection and warning before stepping into forklift traffic
SKU: STY-HDM3
Manufacturer: Collision Awareness
Detect activity on the either side of a door with this motion detection system that includes a light unit with two small LEDs on one side of a wall and another with a single, larger LED on the warehouse side of the wall. As motion is picked up by the sensor on the interior side, the flashing light alerts oncoming forklift traffic to take care. By going off only when it detects motion in two directions, it avoids signaling more often than it needs to, which helps keep people from becoming habituated to it and failing to notice it. Power is supplied through a pre-installed power cord. Cord length options are available below. If you wish to hardwire the sensor into your electrical system choose the Universal Transformer option.
Features:
- Activated only when sensors detect motion in two directions; this reduces false alarms to make signals more effective at catching attention
- Low voltage system with energy efficient LED lights in bright red
- Perfect for access points running perpendicular to fork lift traffic
- Versatile motion sensor system enclosed in safety yellow detector box
- Motion detector boxes are mounted on both sides of a wall next to a door accessing the warehouse space with one bright LED warning light on one side and a bright LED light set on the other side
- Silent operation does not distract other workers; optional audible alert may be added
- Increases facility safety
Use:

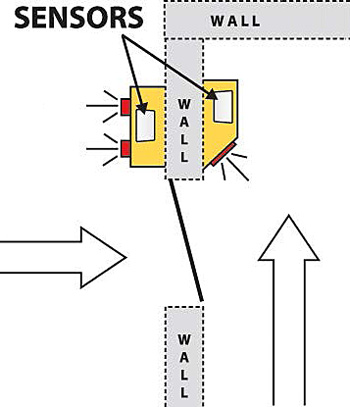

Motion detector boxes are mounted on each side of wall next to door with wiring running through a hole between the two boxes.
- Lead Time: 1 week + transit time
- Door Type: Hall/Entryway
- Warning Lights: 2 small, 1 large
- No. of Boxes: 2 indoor
- No. of Sensors: 2
- Light Placement: Two small lights on face of one box, one larger light on side of the other
- Sensor Range: 35' out and 20' to each side at full outward range, with 90 degree minimum arc
- Wiring: Includes 110V to 24V DC plug-in wall transformer. Universal Transformer available upon request if doing a conduit (hard-wire) installation or for 277V or 240V DC. Alternate hard wire capabilities available, please request when ordering.
- Languages: All warning labels are in English. Spanish is available upon request.
- Flash Timing: Switch included to select between 30 seconds, 4-6 seconds and 15 seconds
- Weight: 12.0 lbs. ea.
- Installation Instructions (527 KB PDF, opens a new window)
- Door Monitor Diagram (51.3 KB PDF, opens a new window)
- Warehouse Sensor Diagram (1.10 MB PDF, opens a new window)
- Collision Sensor Features & Benefits (444KB PDF, opens in new window)
