Hall & Door Motion Monitor 4 - Two Boxes, Two Small Lights & Two Large Lights
Get detection and warning before stepping into forklift traffic
SKU: STY-HDM4
Manufacturer: Collision Awareness
Activity hidden by a door or entryway is easily detected through motion sensor technology that activates flashing LED lights on one side of entry and a double set of LED lights on the forklift side of the entry. Facility safety is greatly enhanced through fewer worker/forklift collisions as well as worker with worker collisions. By going off only when it detects motion in two directions, it avoids signaling more often than it needs to, which helps keep people from becoming habituated to it and failing to notice it. Power is supplied through a pre-installed power cord, with cord length options available below. If you wish to hardwire the sensor into your electrical system choose the Universal Transformer option.
Features:
- Activated only when sensors detect motion in two directions; this reduces false alarms to make signals more effective at catching attention
- Low voltage system with energy efficient LED lights in bright red
- Versatile motion sensor system enclosed in safety yellow detector box
- Perfect for access points running perpendicular to fork lift traffic
- Motion detection boxes are mounted on both sides of a wall next to a door accessing the warehouse space with a bright LED light set on one box and two flashing bright LED light sets on the other box.
- Silent operation does not distract other workers; optional audible alert may be added
- Increases facility safety
Use:

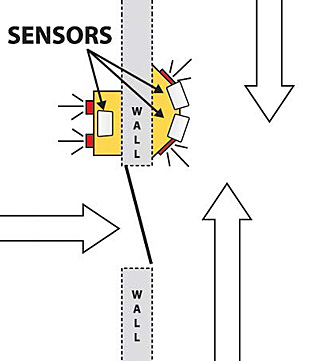

Motion detector boxes are mounted on each side of wall next to a door with wiring running through a hole between the two boxes.
- Lead Time: 1 week + transit time
- Door Type: Hall/Entryway
- Warning Lights: 2 small, 2 large
- No. of Boxes: 2 indoor
- No. of Sensors: 3
- Light and Sensor Placement: One sensor and two small LEDs light on non-fork-lift side of door, and two sensors and two larger lights on fork lift side
- Sensor Range: 35' out and 20' to each side at full outward range, with 90 degree minimum arc
- Wiring: Includes 110V to 24V DC plug-in wall transformer. Universal Transformer available upon request if doing a conduit (hard-wire) installation or for 277V or 240V DC. Alternate hard wire capabilities available, please request when ordering.
- Languages: All warning labels are in English. Spanish is available upon request.
- Flash Timing: Switch included to select between 30 seconds, 4-6 seconds and 15 seconds
- Weight: 15.0 lbs. ea.
- Installation Instructions (527 KB PDF, opens a new window)
- Door Monitor Diagram (51.3 KB PDF, opens a new window)
- Warehouse Sensor Diagram (1.10 MB PDF, opens a new window)
- Collision Sensor Features & Benefits (444KB PDF, opens in new window)
