Overhead Door Clearance Monitor - Double Sensor Set w/ Selectable Audio
Alert drivers to collision potential with bright lights and an audible alarm
SKU: STY-FIT2
Manufacturer: Collision Awareness
Increase safety and reduce collisions with a clearance detection system to warn forklift drivers a load is too high to clear an entry point or go under suspended structures. Place sensors at opposing positions in front of the object at peril, and when an object breaks the detection beam, sensors will trigger bright lights to flash and an audible alarm to sound, warning of an impending collision. This package includes 4 sensors, 2 with 35' cord and 2 with 50' cord; audible alarm with 32 selectable tones; and 1 yellow box with large, dual lights plus electrical cord with a 110V to 24V plug-in wall transformer that fits a 110V receptacle. Cord length options are available below. If you wish to hardwire the sensor into your electrical system choose the Universal Transformer option.
Features:
- Activated only when sensors detect motion in two directions; this reduces false alarms to make signals more effective at catching attention
- Low voltage system with bright red, energy efficient LED lights housed in safety yellow box
- Remote sensors utilize infrared beam disruption technology and are operable in -31°F to 140°F temperature range; suitable for indoor or outdoor use
- Audible alarm offers choice of 32 tones and remote activation up to two tones at 82 to 100 dBa
- Perfect for protecting low hanging objects, door frames, and open overhead door panels in warehouses
- Increases facility safety
Use:

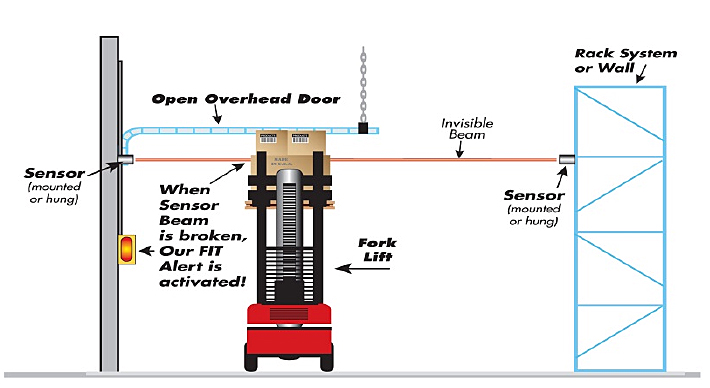

Mount sensors 10 to 15 feet before overhead obstacles. Sensors detect objects breaking sensor beam and trigger flashing lights and audible alarm to warn forklift driver.
- Lead Time: 2 weeks + transit time
- Type: Clearance
- Sensors: 4
- No. of Boxes: 1
- Lights per Box: 2
- Audible Alarm: 32 selectable tones; preset to 100 dBa
- Wiring: Includes 110V to 24V DC plug-in wall transformer. Universal Transformer available upon request if doing a conduit (hard-wire) installation or for 277V or 240V DC. Alternate hard wire capabilities available, please request when ordering.
- Languages: All warning labels are in English. Spanish is available upon request.
- Sensor Temperature Range: -31°F - 140°F
- Flash Timing: Switch included to select between 30 seconds, 4-6 seconds and 15 seconds
- Weight: 21.0 lbs. ea.
- Collision Awareness Catalog (8.31 MB PDF, opens a new window)
- Warehouse Sensor Diagram (1.10 MB PDF, opens a new window)
- Collision Sensor Features & Benefits (444KB PDF, opens in new window)
