Lite-Duty Guard Rail 42"H Section with Posts - 9 ft., Starter
Quickly lay out and construct guard railing using convenient kits
SKU: SY-RAIL-LITE-42-9KIT-S
Manufacturer: Save-ty Yellow
Starter sections provide the foundation for a guard rail run. This 108" long section (measured from post center to post center) includes 2 rails, 1 end post, and 1 end, inline or corner post based on your selection for Post B. Convenient drop-in lift-out rails make installation easy, and they remove for quick access behind the barrier when needed. 42"H posts must be anchored to floor for rated impact resistance of 5,000 lbs. Post base plates accept 5/8" anchor bolts; hardware not included.
$495.75
- Section Length: 108"
- Section Type: Starter
- Rail Width: 103-1/2"
- Post Size: 4" x 4"
- Post Height: 42"
- Base Plate Dimensions: 8" x 8"
- Anchoring: Accepts 5/8" anchor bolts (not included)
- Weight: 122.0 lbs. ea.

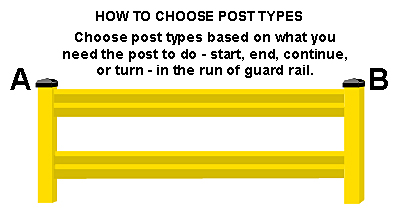

Post choices are: Corner, Inline, or End posts. Depending on post selection made, this section of guard rail may stand alone (two end posts), be part of a longer run (one end and one inline post), end in a corner around an obstacle (1 end and corner post each), or any combination needed.
Rated impact capacity is similar to that of powered and manual stackers, electric pallet trucks, steel carts and hoppers. Not intended to resist full impact of a forklift.
Made of 14-gauge, high tensile steel rails with 4" posts having 8"x8" bases. Install with 5/8" anchor bolts (not included).
- Save-Ty Yellow Catalog (6.95 MB pdf, opens in new window)
Lead Time: 1 week + transit time
Weight: 122.0 lbs. ea.
