Dock Forklift Traffic Light - Ceiling Hung, 4 Sensors
Warn workers of traffic at the dock to reduce potential forklift accidents
SKU: STY-DW4
Manufacturer: Collision Awareness

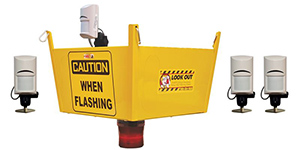

Help alert employees of forklift and pedestrian activity within the dock area before an accident can occur. This warning system is great for multiple dock facilities where there is high collision potential from passing forklift traffic. It includes one box-mounted motion sensor and three remote sensors that connect to the system with included 20-foot cables. Sensors can be aimed at multiple dock locations and adjoining traffic areas nearby. When vehicle traffic is detected, the system activates a bright red flashing light to warn pedestrians and vehicles. This system goes off only when it detects motion in two directions; this keeps it from signaling more than it needs to, which helps ensure that people will notice it. Power is supplied through a pre-installed power cord. Power supply cord length options are available below. If you wish to hardwire the sensor into your electrical system choose the Universal Transformer option.
Features:
- Activated only when sensors detect motion in two directions; this reduces false alarms to make signals more effective at catching attention
- Brilliant flashing, energy efficient red LED light
- Versatile motion sensor system with one sensor mounted to safety yellow detector box and three remote sensors that connect to box with supplied 20' cables
- Sensor Range: 35' out and 20' to each side at full outward range, with 90 degree minimum arc
- Select power supply cord length from 15', 25', 50', 75', or 100'. Includes 110V to 24V DC plug-in wall transformer
- Universal Transformer available upon request if doing a conduit (hard-wire) installation or for 277V or 240V DC
- Includes mounting hardware; provide own chain or cable from ceiling
- All warning labels are in English. Spanish is available upon request.
Use:
- Suspend behind dock doors within 20'
- Detects motion in and around four docked truck trailers at loading dock
- Silent operation does not distract other workers; optional audible alert may be added
- Increases facility safety
- Perfect for loading dock collision awareness
- Lead Time: 1 week + transit time
- Doors to Monitor: 4 dock doors
- Box Enclosures: 1 box - 15.25"H x 16"W x 16"L with safety yellow finish
- Warning Lights: 1 red LED strobe
- Motion Sensors: 1 box-mounted sensor & 3 remote sensors with 20 ft. cables
- Power Supply Cord: 15 ft. standard length; other options available
- Hardware: Includes mounting hardware (other than chain or cable for hanging)
- Flash Timing: Switch included to select between 30 seconds, 4-6 seconds and 15 seconds
- Weight: 18.0 lbs. ea.
