Doorway Traffic Alert - Outdoor Detection, Indoor Strobe Warning

Alert indoor pedestrians and forklift operators of traffic outside an exterior doorway

View Larger Image

SKU: DUALUSE1-EXT-STB

Manufacturer: Collision Awareness

This motion detection system helps employees be safer around exterior doorways. When the outdoor sensor spots movement, it activates an indoor visual warning to alert workers about a potential collision hazard in the doorway or other danger outside, such as unauthorized persons on the property after hours. While a single motion sensor is included, you may add another if you need to detect outdoor movement in a greater coverage area. Power is supplied through a pre-installed power cord; see cord length options below. If you wish to hardwire into your electrical system, choose the Universal Transformer option.

Cord Length (required)

15 ft. Cord

25 ft. Cord [Add $5.41]

50 ft. Cord [Add $15.57]

75 ft. Cord [Add $35.68]

100 ft. Cord [Add $50.10]

Universal Transformer [Add $37.19]

Alarm Option (optional)

STY-AUDIBLE – Indoor Audible Alarm [Add $100.91]

Audible Alarm option is added to the bottom of the particular sensor you are ordering. A switch is included so you can turn the audible alarm on or off as needed.

Its compact size keeps it from getting bumped, knocked off, or crushed. Despite the small size, it puts out an easily heard alarm. Recommended for settings with bright light where workers may need additional attention to the visual alert.

Option is only available at time of placing sensor order. Cannot be purchased separately.

Extra Sensor (optional)

STY-SENSOR-EXT plus STY-WALLBRACKET – Additional Outdoor Sensor with Wall Mount Bracket [Add $435.98]

Add an exterior sensor to your traffic warning system to monitor outdoor traffic moving in an additional direction. Includes wall mount bracket.

Exterior sensors have a sensor range of 40' x 40'. They are resistant to insects and weather and have an operating temperature of -40°F to 122°F.

Summary

Base Price:

$888.63

As Configured:
$888.63

Quantity

Inquire

Options Selected

Cord Length : 15 ft. Cord

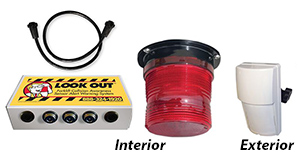

Standard system components:

1 interior control box
1 interior red warning strobe with wall mount bracket
1 exterior sensor with wall mount bracket

Features:

Low voltage system with brilliant, energy efficient LED strobe
Flash timing may be set to 6, 15, or 30 seconds
Silent operation unless optional audible alarm is added

Lead Time: 2 weeks + transit time
Detection: Outdoors
Alert: Indoors
Standard # Sensors: 1 exterior
Interior Warning: Strobe
Exterior Warning: N/A
Exterior Sensor Range: 40' x 40'
Exterior Sensor Temperature Range: -40° to 122°F
Power Supply: Includes 110V to 24V DC plug-in wall transformer. Universal Transformer available upon request if doing a conduit (hard-wire) installation or for 277V or 240V DC. Alternate hard wire capabilities available, please request when ordering.
Languages: All warning labels are in English. Spanish is available upon request
Flash Timing: Switch included to select between 30 seconds, 4-6 seconds and 15 seconds
Weight: 5.0 lbs. ea.

Installation Instructions (930 KB PDF, opens a new window)

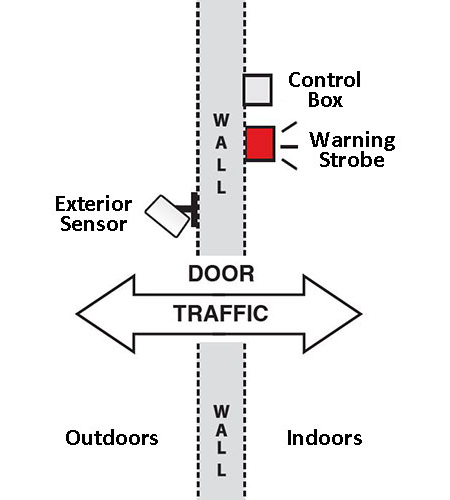

Warehouse Sensor Diagram (1.10 MB PDF, opens a new window)
Collision Sensor Features & Benefits (444KB PDF, opens in new window)
