Hand-Portable Aisle Gate, 40"h x 84"w

Easily-transported folding gate cordons off hazard areas

View More Images

SKU: AISLEGATE

Manufacturer: Illinois Engineered Products

Utilize aisle gates to temporarily segment off retail or warehouse aisles, service work areas, or hallways while work or cleanup is being done. These gates are easy to hand transport at just 12 pounds per gate. Carry-on handle makes it easy to grasp and move. Gates can be linked together to form corners or any length desired for your application.

The leg stands are 12" wide. Finish is powder-coated for durability, high-visibility, safety yellow (other OSHA colors are available - contact us for assistance). Ships fully assembled.

$271.51

Inquire

Images

Click on the thumbnails to see a larger image below.

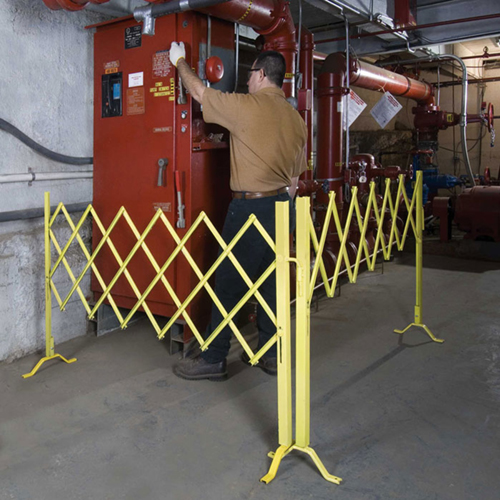

Aisle Gate in Use

Specifications

Width: up to 84"
Height: 40"
Depth: 7" Stacked
Height (Open): #REF!
Height (Closed): 40"
Lattice: 3/8" x 3/4" 14 gauge galvanized with 3/16" x 1/2" zinc plated steel rivets
Frame: 1-1/2" x 1-1/2" 12 gauge powder coated angle iron with "L" shaped locking pin that allows gates to be connected to each other Gate stands on 14 gauge CRS powder coated feet
Straps: 12" long x 1-1/2" wide 14-gauge CRS with powder coat finish
Finish: Safety yellow powder coat
Assembly: Ships assembled
Type: Aisle Gate
Weight: 12.0 lbs. ea.

Description

Leg stands are 12" wide
Finish is powder-coated for durability, high-visibility, safety yellow (other OSHA colors are available - contact us Ships fully assembled, and weighs only 12 pounds so one person can easily carry the gate to its destination
Steel U-channel webbing riveted back-to-back with aircraft-quality aluminum rivets that won't rust
1.5" x 1.5" vertical member angles
