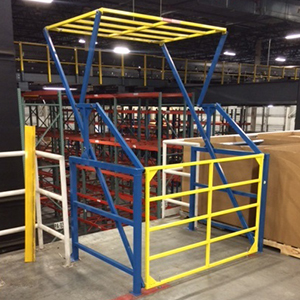

Improve ergonomics and safety with this pivot mezzanine safety gate, which requires very little effort to lift and lower, and also keeps workers from accessing an open mezzanine edge during load and offload situations. As the gate at the mezzanine edge is raised, the mezzanine floor gate lowers, closing off access to the open edge. Once materials have been moved by lift machinery working at the edge, workers may raise the floor level gate, lowering the edge gate, and have safe access to the loading zone again. This model is double pallet width.
Frame Construction:
2"x2" 14-gauge cold-rolled steel frame; 1"x1"x1/8" square tubing with vertical reinforcing members welded to horizontal rails; pivot arm interconnect; welded on foot plates with pre-drilled 1/2" bolt holes
Gate Construction:
1"x1"x1/8" square tubing with vertical reinforcing members welded to horizontal rails
Installation:
Securely bolt unit to mezzanine floor; takes 2 people approx. 1 hour per unit; no special tools needed
Foot Plates:
Welded on, with pre-drilled holes for 1/2" bolts
