Doorway Traffic Alert - Dual Detection, Indoor Double Light & Outdoor Strobe Warning
Alert pedestrians and forklift operators of traffic on the opposite side of an exterior doorway
SKU: DUALUSE8-EXT-DOD
Manufacturer: Collision Awareness

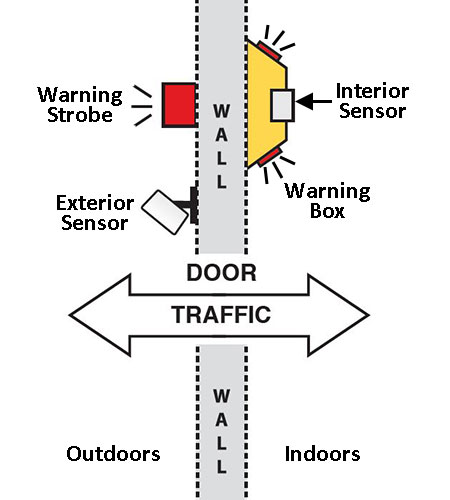

This motion detection system helps employees be safer around exterior doorways. It includes both an indoor and outdoor sensor that activate a visual alarm on the opposite side of the doorway when they spot approaching vehicles or pedestrians. This warns workers about potential collision hazards for those passing through or in front of the doorway, as well as other dangers such as unauthorized persons on the property after hours. By signaling only when it senses motion in two directions, this system avoids going off more often than it needs to, which helps to keep people from becoming accustomed to it and failing to notice it. You may add extra sensors if you need to monitor movement in a greater coverage area, indoors or outdoors. Power is supplied through a pre-installed power cord; see cord length options below. If you wish to hardwire into your electrical system, choose the Universal Transformer option.

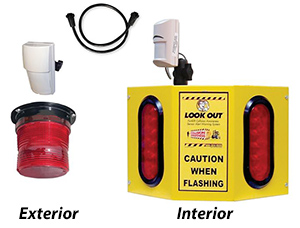

Standard system components
- 1 interior yellow box with 2 large red warning lights
- 1 interior sensor (mounts on interior yellow box)
- 1 exterior red warning strobe with wall mount bracket
- 1 exterior sensor with wall mount bracket
Features:
- Activated only when sensors detect motion in two directions; this reduces false alarms to make signals more effective at catching attention
- Low voltage system with brilliant, energy efficient LED lights
- Flash timing may be set to 6, 15, or 30 seconds
- Silent operation unless optional audible alarm is added
- Lead Time: 2 weeks + transit time
- Detection: Indoors & outdoors
- Alert: Indoors & outdoors
- Standard # Sensors: 1 interior & 1 exterior
- Interior Warning: 2 large lights
- Exterior Warning: Strobe
- Interior Sensor Range: 35' out and 20' to each side at full outward range, with 90 degree minimum arc
- Interior Sensor Temperature Range: 14°F to 131°F
- Exterior Sensor Range: 40' x 40'
- Exterior Sensor Temperature Range: -40° to 122°F
- Power Supply: Includes 110V to 24V DC plug-in wall transformer. Universal Transformer available upon request if doing a conduit (hard-wire) installation or for 277V or 240V DC. Alternate hard wire capabilities available, please request when ordering.
- Languages: All warning labels are in English. Spanish is available upon request
- Flash Timing: Switch included to select between 30 seconds, 4-6 seconds and 15 seconds
- Weight: 11.0 lbs. ea.
