Doorway Traffic Alert - Indoor Detection, Outdoor Double Light Warning
Alert outdoor pedestrians and forklift operators of traffic inside an exterior doorway
SKU: DUALUSE13-EXT-DOD
Manufacturer: Collision Awareness

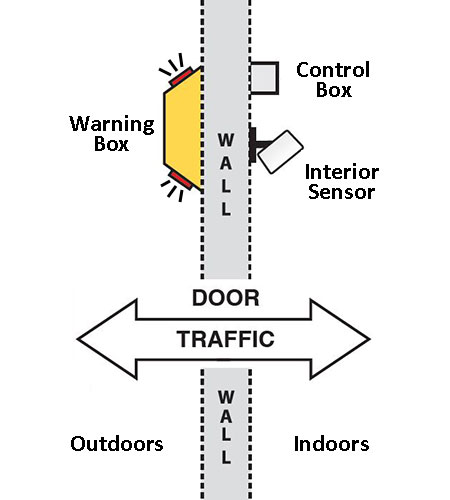

This motion detection system helps employees be safer around exterior doorways. When the indoor sensor spots movement, it activates an outdoor visual warning to alert workers about a potential collision if they pass through or in front of the doorway. While a single motion sensor is included, you may add another if you need to detect indoor movement in a greater coverage area. Power is supplied through a pre-installed power cord; see cord length options below. If you wish to hardwire into your electrical system, choose the Universal Transformer option.
Use:

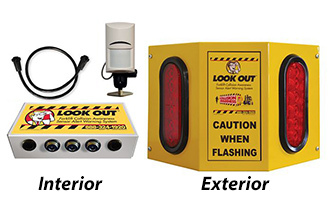

Standard system components
- 1 interior control box
- 1 interior sensor with wall mount bracket
- 1 exterior yellow box with 2 large red warning lights
- 5' wiring harness
Features:
- Low voltage system with brilliant, energy efficient LED lights
- Flash timing may be set to 6, 15, or 30 seconds
- Silent operation unless optional audible alarm is added
- Lead Time: 2 weeks + transit time
- Detection: Indoors
- Alert: Outdoors
- Standard # Sensors: 1 interior
- Interior Warning: N/A
- Exterior Warning: 2 large lights
- Interior Sensor Range: 35' out and 20' to each side at full outward range, with 90 degree minimum arc
- Interior Sensor Temperature Range: 14°F to 131°F
- Power Supply: Includes 110V to 24V DC plug-in wall transformer. Universal Transformer available upon request if doing a conduit (hard-wire) installation or for 277V or 240V DC. Alternate hard wire capabilities available, please request when ordering.
- Languages: All warning labels are in English. Spanish is available upon request
- Flash Timing: Switch included to select between 30 seconds, 4-6 seconds and 15 seconds
- Weight: 10.0 lbs. ea.
- Installation Instructions (926 KB PDF, opens a new window)
- Warehouse Sensor Diagram (1.10 MB PDF, opens a new window)
- Collision Sensor Features & Benefits (444KB PDF, opens in new window)
