Vertical Access Gate with Slam Protection - Double, Yellow, 108" to 168" Opening
Soft-closing gate adds fall protection and restricts access to hazards, helping you run a safer facility
SKU: ESGDBL-120-PCY
Manufacturer: PS Industries

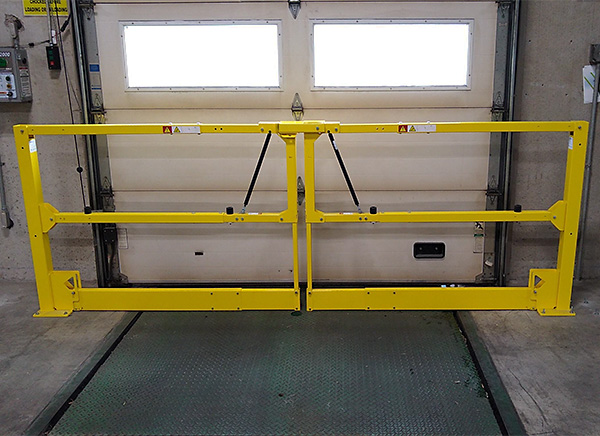

At dock doors or elevated work platforms, this lockable double gate provides OSHA-compliant fall protection. On the ground level, you can use it to keep workers away from dangerous equipment. It's easy enough to lift that most workers can move the gate out of the way with just one hand, and a unique soft-close function ensures quiet operation. Made in the USA. Adjusts to fit openings from 108" to 168". An optional toeboard is available in the Accessories tab below; order two per double gate.
$2,538.21
- Approved for Fall Protection: Yes
- Type: Double
- Opening: 108" to 168"
- Lift: 90°
- Fall Protection Note: When used to protect an edge, the operator is required to use another primary means of fall protection while the gate is open
- Rail Construction: Mild steel tube, 1-3/4" square, minimum 16-ga., factory welded
- Post Construction: Mild steel tube, 3" square, minimum 12-ga., factory welded
- Anchors: 3/8" expansion-type anchors for installation into 3,000 psi (minimum) concrete
- Fasteners: Zinc plated
- Finish: Yellow powder coat
- Weight: 153.0 lbs. ea.
Combine Your Purchase With
Click on the thumbnails to see a larger image below.
 |  |  |  |  |
- Brochure (5.79 MB PDF, opens in new window)
- Installation, Operation and Maintenance Manual (4.99 MB PDF, opens in new window)
- Drawing (169 KB PDF, opens in new window)
Lead Time: 5 to 10 days + transit time
Contact Cisco-Eagle to get a Shipping Rate for this item
