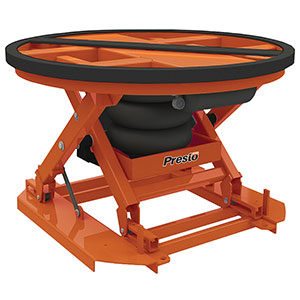

Pallet Positioner, 43" diameter top, 4500 lb. Cap.

Position, load, unload pallets without stooping, stretching, or walking

View Larger Image

SKU: PRST-P3

Manufacturer: Presto

This pallet positioner helps the operator load or unload pallets at the ideal ergonomic work height. It is self-leveling, so the load remains at a comfortable working height as items are added or removed. The rotating platform puts the load right in front of you to minimize stretching. It rotates easily, with a minimum of force; just push it and it moves. The positioner has a 4500 lb capacity in the holding position and 1500 lbs in lifting capacity.

Specifications

Capacity: 4500
Type: Pneumatic
Low/Raised Ht.: 9.5" / 30.5"
Manufacturer: Presto
Base Dimensions: 48" x 28"
Lifting Cap. (lbs.): 1500
Rotating Platform: .38" thick x 43" diameter
Weight: 815.0 lbs. ea.

P3 Features & Demonstration

Description

Build or break down pallet loads with a minimum of bending, reaching, stretching or walking

The pallet positioner is pneumatically operated and requires clean, dry air supply of 80 PSI at 15 CFM free air
Safety pressure relief valve is factory preset to the maximum safe capacity
Base includes fork pockets for easy relocation with a fork truck
Engineered to meet or exceed ANSI MH29.1 standard
Ensure that loading and unloading of the AL30 is done in even layers. Loading or unloading a load on one side may cause the load to tip over
Lifetime warranty standard on Firestone Actuator
