Mini-Load AS/RS Systems
Automated storage and retrieval systems for totes, containers, or cartons
Ask an Expert
"A mini-load AS/RS is a computerized storage system that uses a crane to retrieve the right loads—typically in small containers, cartons or totes. These systems work great for high-density storage and high-volume order picking. We can do single or double deep, and if you need cold storage, we can do that too. Just contact us with your questions."
Ed, Employee-Owner Since 2002
Design Technician Manager
Why mini-load systems?
A mini-load system lets you store more material in less space - especially material in totes. It handles totes much faster than conventional static or manual methods. Despite that speed, Mini-load systems tend to run quieter than other options. Since these systems are specifically engineered for tote/carton storage and access, they are ideal for a broad variety of applications.
- Smaller load units
- Dynamic access
- Short access times
- Interlinking of systems

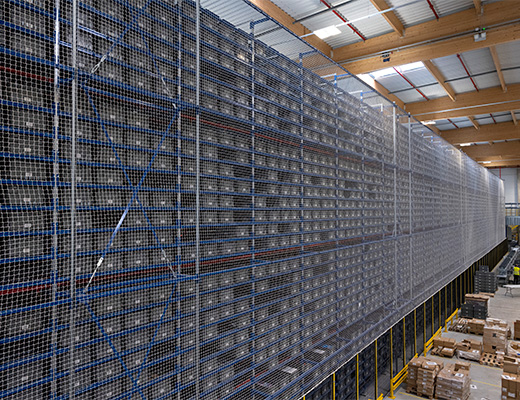

Mini-load AS/RS maximizes the cube, saving space while increasing throughput
Mini-load systems offer a narrow footprint to help save floor space and enhance storage density even more. They optimize highly dynamic logistics processes and warehouse or distribution center applications. We can help you reach your throughput and productivity goals in less space, in less time by integrating mini-load AS/RS with conveyors, software and other process machinery.
- Compatible with dense case/carton storage - totes, boxes, and other smaller loads
- Handles up to four units
- Double deep storage capabilities give the FX-Quad mini-load system lightning fast throughput and excellent storage density
- High-speed crane travels 300 meters per minute and hoists and 180 meters per minute
- Combine the system with pallet based (unit load) ASRS for a very high density, residual case management system
Muratec FX-Quad fork types help you handle most any load

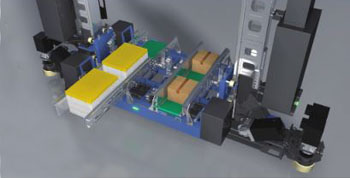

Rear hook is highly flexible for multiple load types
This system can handle 25KG (55 pounds) per carton, up to four.

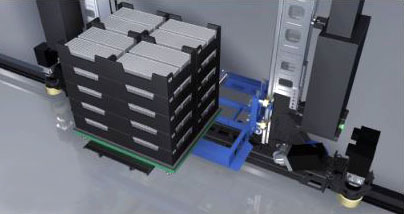

Single fork for heavier, stacked loads and high-density needs
Rated for loads of 300KG (661 pounds). This is an ideal configuration for concentrated storage of cartons or totes.

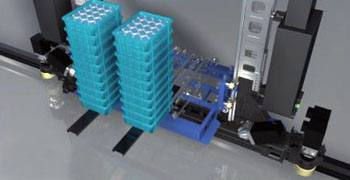

Twin fork with belt conveyor: ideal for high-density products and high-volume shipments
These systems are good for stackable loads and are load rated for dual loads up to 100KG (221 pounds) per item.

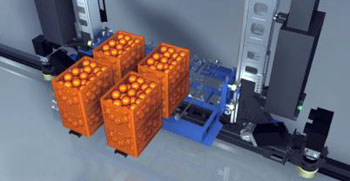

Twin fork with belt conveyor (double deep) for efficient case handling applications
This fork type can handle four loads up to 50KG (110 pounds). Its heavier load ratings and storage density are achieved through load stacking.
