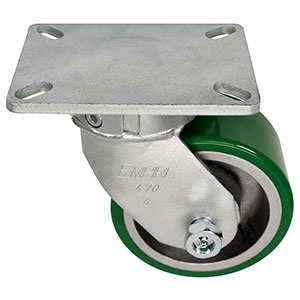

Urethane on Iron wheel is liquid cast and chemically bonded to machined, cast-iron cores. Capacities rival those of steel wheels. Careful attention is made during the bonding process to assure that each wheel meets high performance standards. UI wheels are non-marking, and resistant to abrasion, chemicals, and oil. These wheels will typically outlast rubber wheels. Temperature range: -40 degrees F to 180 degrees F.
Raceway:
Kingpinless single ball bearing precision machined raceway hardened to .53 Rockwell C minimum. Swivel section features 3" dia. raceway with 1/2" ball bearings. Notched raceway is standard.
Leg Thickness:
3/8"
Axle:
3/4" bolt with lock or slotted nut as required
Mounting Plate Size:
5-1/4" x 7-1/4" x 3/8"
Bolt Hole Spacing:
3-3/8" x 5-1/4"; slotted to 4-1/8" x 6-1/8"
