Standard Duty Lifting Beams

Help stabilize loads without taking up too much headroom

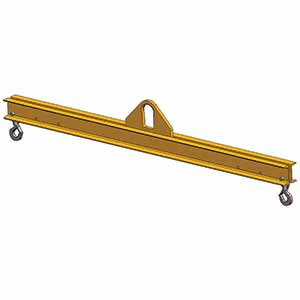

The standard duty lifting beam is constructed with two channel beams and a plate bail with opening where the device connects to the hoist or crane
Each beam includes two load attachment swivel hooks that can be used at three standard spreads (or two spreads for 3' and 4' beams)
Compared with a spreader beam, this style of lifting device uses minimal headroom-- so there's more space for raising the load
Lifting beams are manufactured with a 3:1 safety factor and expected service life of 100,001 to 500,000 lifts

Filter By:

Sort By:

Products per page:

Viewing Page 1 of 3

Page: 1 2 3 >>>

Model No.	Capacity (Tons)	Max Spread	Headroom
HSDLB-1-4	1	4'	13"
HSDLB-1-6	1	6'	14"
HSDLB-1-8	1	8'	14"
HSDLB-1-10	1	10'	15"
HSDLB-1-12	1	12'	16"
HSDLB-2-4	2	4'	14"
HSDLB-2-6	2	6'	15"
HSDLB-2-8	2	8'	16"
HSDLB-2-10	2	10'	17"
HSDLB-2-12	2	12'	18"
HSDLB-5-4	5	4'	19"
HSDLB-5-6	5	6'	20"

Model No.	Capacity (Tons)	Max Spread	Headroom
HSDLB-1-4	1	4'	13"
HSDLB-1-6	1	6'	14"
HSDLB-1-8	1	8'	14"
HSDLB-1-10	1	10'	15"
HSDLB-1-12	1	12'	16"
HSDLB-2-4	2	4'	14"
HSDLB-2-6	2	6'	15"
HSDLB-2-8	2	8'	16"
HSDLB-2-10	2	10'	17"
HSDLB-2-12	2	12'	18"
HSDLB-5-4	5	4'	19"
HSDLB-5-6	5	6'	20"
