Narrow Coil Lifters
Lift and position coils with 8" to 20" max widths

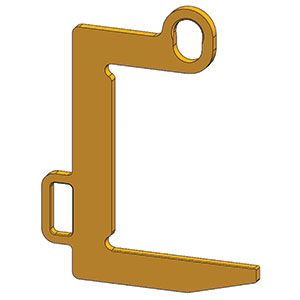

Get Quote- This narrow coil lifter features a C-hook design with an opening at the top where it connects to the crane or hoist and an arm at the bottom that supports the coil during the lift
- The lifter helps minimize damage to the coil with a smooth radius on the lifting arm and a handle on the side for guiding the arm through the coil's inner diameter
- This device is manufactured with a 3:1 safety factor and expected service life of 100,001 to 500,000 lifts
Swipe to view full table
| Model No. | Capacity (Tons) | Max Coil Width | Headroom | Throat Opening Height | Price | ||
|---|---|---|---|---|---|---|---|
| HCLNC-.5-8 | 0.5 | 8" | 18.6" | 14.5" | Contact Us | ||
| HCLNC-.5-12 | 0.5 | 12" | 18.6" | 14.5" | Contact Us | ||
| HCLNC-1-8 | 1 | 8" | 21.6" | 17.5" | Contact Us | ||
| HCLNC-1-16 | 1 | 16" | 21.6" | 17.5" | Contact Us | ||
| HCLNC-2-8 | 2 | 8" | 24.5" | 19.5" | Contact Us | ||
| HCLNC-2-16 | 2 | 16" | 24.5" | 19.5" | Contact Us | ||
| HCLNC-3.5-12 | 3.5 | 12" | 28.2" | 21.5" | Contact Us | ||
| HCLNC-3.5-16 | 3.5 | 16" | 28.2" | 21.5" | Contact Us | ||
| HCLNC-5-16 | 5 | 16" | 33" | 25.5" | Contact Us | ||
| HCLNC-5-20 | 5 | 20" | 33" | 25.5" | Contact Us |
