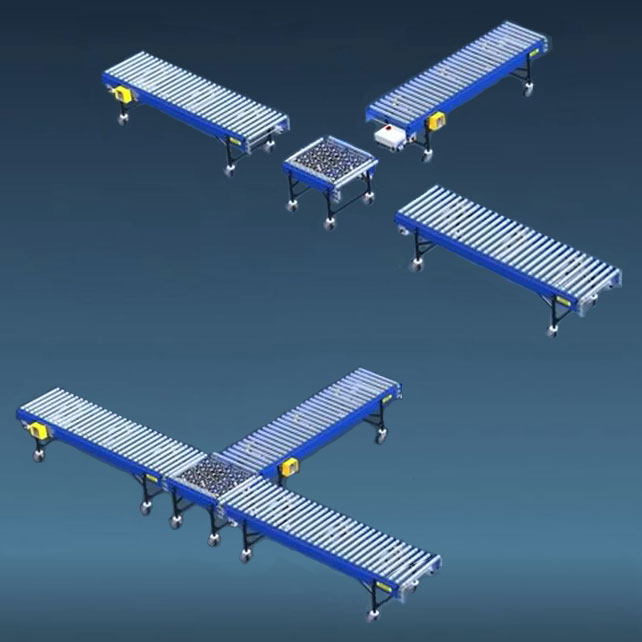

Modular. BestConnect is a system of powered roller conveyor sections that are simple to move, connect, disconnect, and rearrange as needed
Speedy setup. Casters provide portability and include brake locks for stability; latching brackets join sections together quickly; and interfacing cables allow plug-and-play communication between conveyor units
Endless configurations. System layout can incorporate straight runs, curves, merges, splits, and even BestFlex or NestaFlex flexible conveyor for transport directly to or from docked trailers
Future ready. BestConnect conveyor won't just handle the needs of today; easy system expansion and rapid reconfiguration give you a leg up on tackling future challenges
Model No. | Width | Conveyor Section | Type | Price Range | ||
---|---|---|---|---|---|---|
BC24120T | 24" | 10' Straight | Standard | Contact us | ||
BC24120A | 24" | 10' Straight | Accumulation | Contact us | ||
BC2490T | 24" | 7' 6" Straight | Standard | Contact us | ||
BC2490A | 24" | 7' 6" Straight | Accumulation | Contact us | ||
BC2460T | 24" | 5' Straight | Standard | Contact us | ||
BC2460A | 24" | 5' Straight | Accumulation | Contact us | ||
BC24C90L | 24" | 90 degrees Curve | Left Hand | Contact us | ||
BC24C90R | 24" | 90 degrees Curve | Right Hand | Contact us | ||
BC24M45L | 24" | 45 degrees Merge | Left Hand | Contact us | ||
BC24M45R | 24" | 45 degrees Merge | Right Hand | Contact us | ||
BC24M30L | 24" | 30 degrees Merge | Left Hand | Contact us | ||
BC24M30R | 24" | 30 degrees Merge | Right Hand | Contact us |
Model No. | Width | Conveyor Section | Type | Price Range | ||
---|---|---|---|---|---|---|
BC24120T | 24" | 10' Straight | Standard | Contact us | ||
BC24120A | 24" | 10' Straight | Accumulation | Contact us | ||
BC2490T | 24" | 7' 6" Straight | Standard | Contact us | ||
BC2490A | 24" | 7' 6" Straight | Accumulation | Contact us | ||
BC2460T | 24" | 5' Straight | Standard | Contact us | ||
BC2460A | 24" | 5' Straight | Accumulation | Contact us | ||
BC24C90L | 24" | 90 degrees Curve | Left Hand | Contact us | ||
BC24C90R | 24" | 90 degrees Curve | Right Hand | Contact us | ||
BC24M45L | 24" | 45 degrees Merge | Left Hand | Contact us | ||
BC24M45R | 24" | 45 degrees Merge | Right Hand | Contact us | ||
BC24M30L | 24" | 30 degrees Merge | Left Hand | Contact us | ||
BC24M30R | 24" | 30 degrees Merge | Right Hand | Contact us |
Use these components to create nearly endless conveyor system configurations for package loading/unloading and sortation. When conveying needs change due to seasonal shifts in demand or evolving application requirements, just add or remove conveyor sections and rearrange as needed. Simple cable connection interfacing and quick latching brackets let you join and detach modules with ease, so setup and reconfiguration require very little downtime for your operation.
Standard straight conveyor activates all rollers in unison to move products down the line. Accumulation conveyor uses zones of powered rollers and photoeye sensors at the end of each zone to control package movement. When a package is detected in the final zone, the zone's rollers halt. The zones upstream will only release a package if the next downstream zone is empty. This allows a row of packages to accumulate for loading or sortation.
Curved conveyor sections effect turns in system layout. Tapered rollers help maintain product orientation through the right or left turn. 90 degrees curvature is standard; contact us if another curve angle is needed.
A merge joins one conveyor line to another at a 30 degrees or 45 degrees angle. Note that collision prevention logic is not a standard feature.
Steel balls set into a tabletop create an ideal surface for rolling and rotating packages in any direction. Use ball transfers to sort packages manually or orient them for downstream processes.
Additional conveyor sizes not shown here may be available upon request.
Photo eye package stops may be added to standard straight sections. These stop the rollers when a package is detected at the end of the conveyor, preventing it from falling off. When the package is removed, the rollers activate once more.
Special brackets installed on the ends of a BestFlex powered flexible conveyor or NestaFlex gravity flexible conveyor permit connection to a BestConnect system. For BestFlex and BestConnect conveyors to share operational controls, additional interfacing equipment is needed.
Contact us for assistance.
