Overhead Door Motion Monitor 3 - Single Set plus One
Use motion sensors to warn forklift traffic of other traffic at overhead door access points
SKU: STY-ODM3
Manufacturer: Collision Awareness
Check for flashing LED lights before going through that overhead door opening. You might be stepping into the path of a forklift or other equipment on the move. The added safety of motion sensor technology activates a single LED array on one side of a wall and two bright LED light arrays on the other side of a wall next to an overhead door to alert forklift and pedestrian traffic of activity on either the inner or outer side of the door. By going off only when it detects motion in two directions, it avoids signaling more often than it needs to, which helps keep people from becoming habituated to it and failing to notice it. Great for monitoring high speed doors and strip doors where forklift traffic doesn't have to wait for doors to open. Power is supplied through a pre-installed power cord. Cord length options are available below. If you wish to hardwire the sensor into your electrical system choose the Universal Transformer option.
Features:
- Activated only when sensors detect motion in two directions; this reduces false alarms to make signals more effective at catching attention
- Low voltage system with energy efficient LED lights in bright red
- Versatile motion sensor system enclosed in safety yellow detector box
- Perfect for overhead doors accessing other areas of warehouse
- Detects motion on both sides of overhead door and alerts traffic on both sides of door
- Silent operation does not distract other workers; optional audible alert may be added
- Increases facility safety
Use:

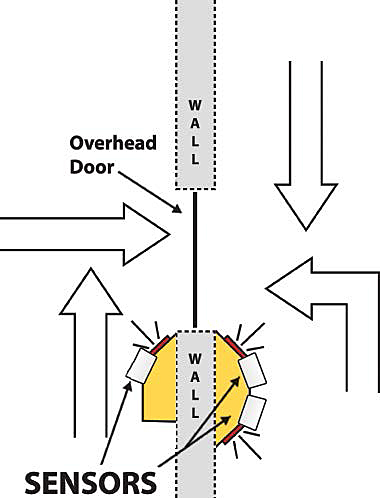

Sensor boxes with bright LED lights are mounted next to overhead door with wiring running through a hole between the two boxes.
- Lead Time: 1 week + transit time
- Door Type: Overhead Door
- Warning Lights: 3 large
- No. of Boxes: 2 indoor
- No. of Sensors: 3
- Sensor Range: 35' out and 20' to each side at full outward range, with 90 degree minimum arc
- Wiring: Includes 110V to 24V DC plug-in wall transformer. Universal Transformer available upon request if doing a conduit (hard-wire) installation or for 277V or 240V DC.
- Languages: All warning labels are in English. Spanish is available upon request.
- Flash Timing: Switch included to select between 30 seconds, 4-6 seconds and 15 seconds
- Weight: 16.0 lbs. ea.
