Dual Load High Profile Automatic Stretch Wrapping Machine - Conveyorized
Reduce labor, increase speed, and work safer in stretch wrapping operations
SKU: OPK-Flex-CTS
Manufacturer: Orion

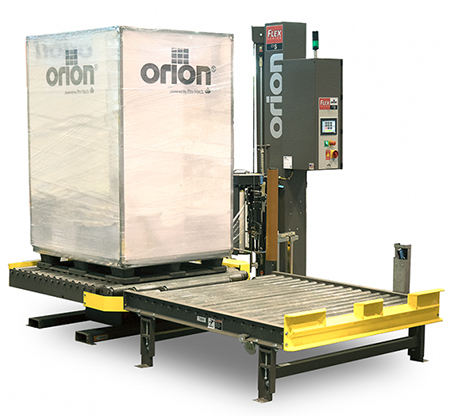

Conveyorized Twin Station stretch wrapping machine increases fork lift efficiency and reduces load handling times by providing a powered conveyor turntable and a gravity conveyor section used as a staging platform for wrapped loads waiting to be picked up. By providing a powered, conveyorized turntable and gravity discharge conveyor section, it can dramatically reduce the amount of time spent handling loads. The Flex CTS stretch wrapping machine offers throughput speeds approaching fully automatic systems at a fraction of the cost.
- Profile: High
- Size: 121.6" L x 99.54"W x 94.5"H
- Type: Fully automatic with pre-stretch
- Capacity: 4000 lbs.
- Pre-Stretch: Yes
- Required Electric: 115/1/60, 20 amp
- Required Compressed Air: 80 PSI clean/dry air at 3 CFM
- Max. Load Size: 48" x 48" x 72"
- Min. Load Size: 36" x 36" x 15"
- Powered Film Pre-Stretch: 260%
- Turntable Support: Precision Ring Bearing
- Turntable Drive: Heavy-Duty Direct Chain & Sprocket
- Turntable Speed: 16 RPM variable speed with "soft start"
- Motors: AC with variable frequency drives
- Controls: Industrial PLC; 24V DC
- Display: Touch Screen HMI
- Control Box: NEMA 12
- Load Height Detection: Automatic using photocell
- Motor Speed Settings: Digital Control
- Conveyor Turntable: Power Driven
- Unloading Conveyor: 5' Gravity Conveyor
- Rollers: 2.5" on 3.25" centers
- Top of Roller Height: 18"
- Conveyor Width: 52"
- Weight: 4500.0 lbs. ea.
Click on the thumbnails to see a larger image below.
 |
Flex High Profile Automatic Stretch Wrappers - Features/Specs
The Flex CTS eliminates the need for an operator to attach and cut the stretch film and eliminates time-loss from forklift drivers "watching" loads being wrapped. Simply place the pallet-load on the Turntable via forklift and pull a lanyard switch while backing away. The machine wraps the load as you have pre-determined it to do, automatically adapting to the load size and shape (within machine specifications). At end of the wrap cycle the load will be conveyed onto the exit pick-up conveyor section, freeing the turntable to receive another load.
The film is pre-stretched (elongated) at 260% which "processes" the stretch film for maximum linear strength and load retention, while reducing material cost. Film Force-to-Load control is automatic, performing like cruise-control so the film constantly adapts to the load shape, size and machine operating speed, resulting in minimal film breaks at maximum stretch. Functionality, uptime and safe interaction are all critical to your operation. The Orion Flex series designs include many standard features to enhance the machine's performance, uptime and safe operator interaction.
Film Tail Cut & Wipe Down System
This is the same pneumatically activated film clamp, cut and press system as used on some of Orion's fully automatic stretch wrapping systems. It's fully adjustable, extremely rugged and designed to give years of reliable service. The standard film cutter is an impulse hot wire. For more demanding applications, an option hot knife option is available. The components used on the conveyors are the same quality as used on other Orion fully automatic machinery.
Operation of the Flex CTS
- The load is brought to Flex CTS stretch wrapper and placed on the conveyorized turntable, while backing away, operator pulls a lanyard or uses the optional Orion remote controller to start the wrapping cycle.
- The operator is free to attend to other tasks such as getting the next pallet load to be wrapped.
- When he returns, the wrapped load has been automatically moved to the gravity conveyor section. He is then free to place the unwrapped load on the turntable and signal the machine to start wrapping.
- Next he picks up the wrapped load from the gravity conveyor and takes it away.
Controller
The Flex CTS controller uses an advanced Allen Bradley PLC for maximum flexibility and reliability. The operator touch panel offers multi-level security and a user-friendly menu-driven operator interface for fast and easy operation. The control box itself is CSA and UL listed and NEMA 12 rated.
Features:
- Industrial Switches for E-Stop & Main Power
- Separate Top and Bottom 1-9 Wrap Count Selectors
- Separate Film Carriage Up/Down Speed Controls
Insta-thread Film Delivery System
The Orion Insta-Thread film delivery system faces the side for easier film roll loading and threading. The system uses specially designed rollers to accurately elongate film at a standard rate of 260%. This highly reliable prestretch system features fast, easy and safe loading. Its non-contact film tension sensor helps provide years of trouble-free wrapping.
A sophisticated photo eye senses even difficult colored and reflective loads, and Orion's unique Insta-Sense system pauses the wrap cycle if the stretch film breaks or runs out.
- AUTOMATIC Film Force-to-Load Control works like Cruise Control
- "Shock Absorber" Film Dancer Bar with Non-Wearing Sensor
- Precision Polyurethane Pre-Stretch Rollers for Consistent Film Yield
- No Lube Belt Lift/Lower system with "Drop-Lock" Technology
- Multi-Point UHMW Precision Carriage Guidance System
- Insta-Sense Film Out/Broken Sensing Logic
- Electronic Film Tension Control Adjustment
- Easy "Drop-In" Film Threading Design
Turntable Structure, Support & Drive
- Adjustable Film Roping Bar - "Curls" Film into Rope to Lock Load to Pallet
- Automatic Film Tail Treatment
- Film Tail Clamp, Hot-Wire Film Cutter, Film Press-to Load System
