Semi-Automatic Case Erector
Squares cardboard box corners and folds bottom flaps
SKU: BER-T10CF
Manufacturer: Berran Industrial Group

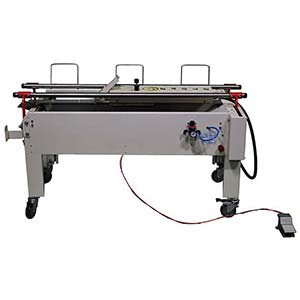

The Eagle T10CF is an easy-to-operate carton erector that works great as an add-on unit to carton sealers from Berran Industrial Group, such as the T500 (see Accessories). The operator positions the unassembled carton and the machine folds the bottom flaps. The machine then holds the carton in place until the operator activates the traverse mechanism; this pause allows for the carton to be filled before being sent through the carton sealer. The T10CF features foot pedal and push button activation, adjustable height, and locking casters.
Lead times have been temporarily extended and will be confirmed at time of order.
Lead times have been temporarily extended and will be confirmed at time of order.
$4,400.00
- Width: 35.5"
- Height: Adjustable 28" to 35"
- Length: 59.5"
- Machine Type: Semi-Automatic
- Carton Length: 6" to 26"
- Carton Width: 5" to 18.5"
- Carton Height: 5.5" to 20"
- Infeed Height: 28" to 35"
- Power Supply: 110vac/60Hz
- Air Consumption: 1cfm @ 80psi
- Weight: 332.0 lbs. ea.
Combine Your Purchase With
Click on the thumbnails to see a larger image below.
 |

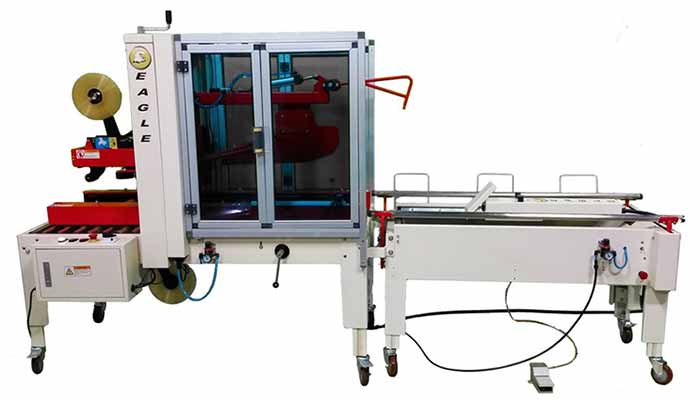

The T10CF case erector is often used in conjunction with the T500 sealer for a complete packaging system. See Accessories tab for the T500.
- Operation Manual (524 KB PDF - opens in new window)
Lead Time: Temporarily extended; at time of order we will confirm lead time + transit time
Weight: 332.0 lbs. ea.
Get Shipping Estimate
Country:
Zip:
1 year
