Low Profile Automated Stretch Wrap Turntable, Surround Deck - 63" dia.
Reduce labor, increase speed, and work safer in stretch wrapping operations
SKU: OPK-Flex-LPA
Manufacturer: Orion
Save time in your packaging operations by eliminating the need for operators to attach and cut stretch film. Place the pallet load on the machine, pull a lanyard switch, and the shrink wrapper performs the entire wrap cycle automatically without the need for an operator to tie the film tail to the load at the beginning of the cycle and detach it at the end. This allows operators to execute other tasks while the machine wraps the payload. Also eliminates waste and saves money by slashing film use. This system features standard, automatic load-height sensing for easy operation. Loads with a pallet jack or electric walkie (with optional ramp); can also be forklift-loaded.
- Profile: Low
- Size: 63" Turntable, 100"L x 68"W x 89"H System
- Type: Fully automatic with pre-stretch
- Capacity: 5000 lbs.
- Pre-Stretch: Yes
- Weight: 2400.0 lbs. ea.
Click on the thumbnails to see a larger image below.
 |  |  |
The Flex LPA eliminates the need for an operator to attach and cut the stretch film. Simply place the pallet-load on the machine via pallet-jack, electric-walkie or forklift, and pull a lanyard switch while backing away. The machine wraps the load as you have pre-specified, automatically adapting to the load size and shape (within machine specifications).
The film is pre-stretched (elongated) at 260% which processes the stretch film for maximum linear strength and load retention while reducing material cost. Film Force-to-Load control is automatic, performing like cruise-control so the film constantly adapts to the load shape, size and machine operating speed, resulting in minimal film breaks at maximum stretch.
Low Profile Stretch Wrapping System Specifications
- Automatic cycle reduces labor
- 15 RPM variable speed with ‘soft-start'
- 5,000-pound maximum load capacity
- Economical 260% powered film pre-stretch
- 63" diameter turntable for loads up to 50" x 50"
- Maximum load height: 80". Optional heights to 110" - contact us
- Loads with an electric walkie or pallet jack (with optional ramp), or by forklift
- AC/VFD motors reduce maintenance needs
- Full surround deck protects the turntable
- Durable, high-strength structural steel frame
- Film is easy to load from either side
- Forklift portable - so it's easy to move around your operation

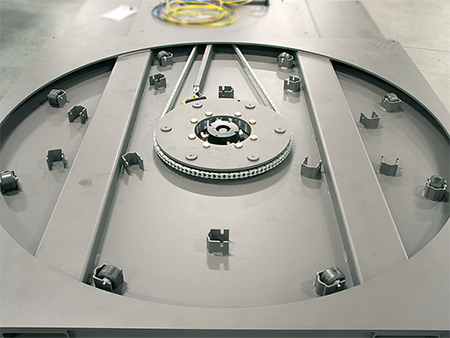

- Precision Ring Bearing Turntable Support with added DuraGlide bearings
- LPA Series Layout Drawing 209 KB PDF, opens a new window
- Brochure 1.35 MB PDF, opens a new window
