High Velocity Yoke Mount Fan - 10", 115v - 1ph

A tiny giant that moves air 40 feet away

View More Images

SKU: F10A

Manufacturer: Patterson Group

Some say "the smaller, the better", and this little giant just may be the perfect example. Throwing air a distance of 40 feet with just 10" of blade diameter, this high velocity fan provides not only air movement but also cooling to workers in its path.

Specifications

Style/Size: Yoke mount, 10"
Voltage: 115v - 1ph
CFM: 800
Air Throw Distance: 40'
Dimensions: 15-5/8"W x 13"D
Amps: .8-.7
Enclosure: Totally enclosed
Duty Cycle: Continuous
Decibels: 56.6-55.7 at 20 ft.
Warranty: 1 year
Weight: 12.3 lbs. ea.

Images

Click on the thumbnails to see a larger image below.

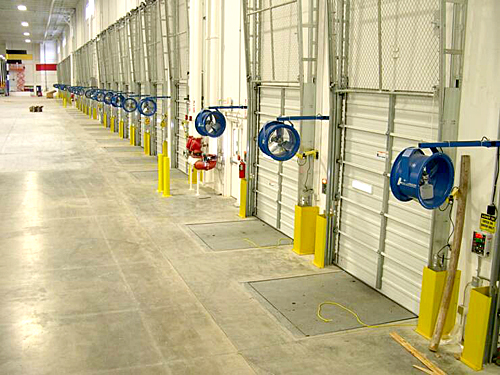

Truck Coolers used for blowing air into trailers and cooling the staging areas.

30" fans sweeping the aisle-ways. Upper fans blowing into a mezzanine.

Suspended ceiling fans blowing down aisle-ways.

Truck Coolers used for blowing air into trailers and cooling the staging areas.

Description

Yoke mount that comes standard on this fan is adjustable and allows fan to be angled for best air flow.

Optional Mounts (see Documentation tab for installation information):

Truck Cooler Mount - makes it possible to aim the air flow into the trailer space during load/off-load operations. Increasing the air flow into the trailer cools the trailer interior air which can reach temperatures well above 100 degrees. The increased air flow also provides fresh air to workers inside.

Column Wall Mount - allows you to place fans where needed within the warehouse/distribution center space to provide air movement that reduces condensation on cement and product packaging and provides fresh air interchange within aisles and rack spaces. Also useful for locating where air flow is needed within the product process.

pedestal Stroller - makes your fan mobile. Simply rock the fan back onto the casters and roll it to the location where it is needed. Allows you to provide air flow as needed.
