Dock & Truck Cooler Fan - L-Mount, 16"W x 16"D, Select Voltage, 3/4-HP
Get your dock fan out of the forklift path to decrease accidents and product damages
SKU: HVTC
Manufacturer: Patterson Group
Making a hot job bearable changes the whole mindset and increases the care with which a worker does their job. Adding a dock or truck cooler fan to your loading/unloading areas is the key to worker attitudes of enthusiasm or indifference. This 16 x 16" fan powered by a Select Voltage, 3/4 HP motor moves 2800 cubic feet of air per minute with an air throw distance of 60' feet - plenty of air movement to keep heads cooler and clearer.
- Size (in.): 16 x 16
- CFM: 3200

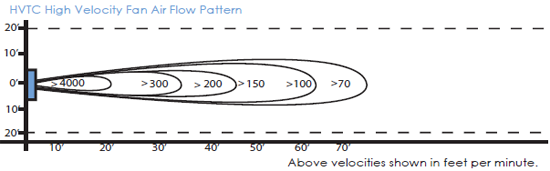

- Air Throw Distance: 60'
- Voltage: 115v, 230/460v, 277v, or 208-230v
- HP: 3/4
- Blower Dimensions: 9-1/2" x 11"
- Housing: 16 gauge steel
- Inlet Guards: 1/2" opening
- Outlet Guards: 3/4" opening
- RPM: 1075
- Duty Cycle: Continuous
- Warranty: 2 years
- Ambient Temperature: 104°
- Weight: 57.6 lbs. ea.
Click on the thumbnails to see a larger image below.
 |  |  |  |  |
Truck Coolers used for blowing air into trailers and cooling the staging areas.
High Velocity Truck Cooler at each dock door
High Velocity Truck Cooler seen from below
- HVTC Brochure (223 KB PDF, opens a new window)
- HVTC Assembly Instructions (87.2 KB PDF, opens a new window)
- Patterson Fan Manual (1.46 MB PDF, opens a new window)
