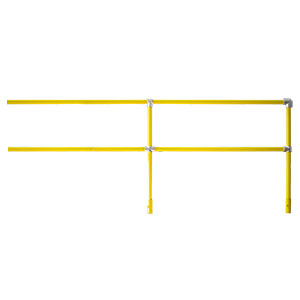

Plastic Sleeved Steel Handrail - Adder, 42"H x 5'L x 1.9"Dia.
Vivid colored plastic handrails add safety, lower maintenance
SKU: HRK-2-60-42-A
Manufacturer: Ideal Shield
Adder handrail sleeved in a durable, weather resistant HDPE with magnesium alloy fittings gives your steel handrail system a stylish, maintenance free finish that lasts for years. Containing ultra-violet and anti-static additives, the sleeve material resists fading, cracking and electrical conductivity while alloy fittings do not chip, peel or rust. Select from a wide range of colors to add a vibrant tone to your facility or select silver or black for a more understated look. Core mount, plate mount and removable applications are available with adjustable fittings for slopes and unique environments. System ships in fully assembled sections and installs with no on-site welding or hot work. All you need is an allen wrench to complete assembly. Call for custom configurations. Removable and re-usable to match changing floor plans. Meets OSHA and BOCA fall-protection standards.
- Color: OSHA Yellow
- Height (in.): 42
- Depth (in.): 1.9
- Length (ft.): 5
- Type: Adder
- Overall Dimensions: 42"H x 1.9" dia. x 5'L
- Mid-Rail Height: 21"
- Includes: (1) 5 foot linear two-rail run, end caps, joints & hardware. Base plates included if selected
- Applications: Sidewalks, interior pedestrian walkways, safety rail on mezzanines, exterior loading areas, stairs and property barriers (please call if ordering for stairs)
- Construction: 1.25" Schedule 40 steel rails, 1.25" Schedule 80 steel posts. Rail fittings are aluminum/magnesium alloy. Sleeving is hi-density polyethylene thermoplastic with ultraviolet & anti-static additives
- Weight: 42.3 lbs. ea.
Click on the thumbnails to see a larger image below.
 |  |  |  |  |  |  |  |
 |  |  |  |
Yellow is the most popular choice for safety applications in industrial facilities, but several other standard colors are available
Adding quality steel handrail to your property has never been easier or looked so good. Begin with a 5 foot starter unit, then complete your handrail run with the appropriate number of 5 foot adders. Next, choose your preferred installation method - core drilled or base plate mount. Then select the color for the durable rail sleeves. Each starter/adder order will be fulfilled with the required hardware needed to make a single run mounted per your selection from start to finish. By following the easy instructions, installation is a simple task whether using base plate mounts or core drilling into concrete flooring for extra sturdy support and stability. Comes fully assembled. Custom configurations available upon request for slopes, three-line, picket, and infill designs.
Installation is simple
Bore-in Method:
Drill core hole at pre-marked location.
Drill core hole at pre-marked location.
With the help of another person, slide the handrail posts into the pre-drilled holes.
Back-fill around posts with cement to firmly anchor posts.
Base Plate Method:
Pre-drill anchor holes, position base plate anchor holes over drilled holes. Insert anchor bolts and tighten fully.
Pre-drill anchor holes, position base plate anchor holes over drilled holes. Insert anchor bolts and tighten fully.
