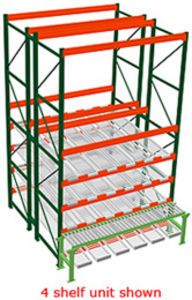

Pallet Rack w/ Flow Storage & Conveyor, 14H x 8W x 8D - 3 Shelves, 6 Lanes - Double Deep Starter
Carton Flow Pick Faces & Static Pallet Storage -In a High Density Footprint
SKU: UPMCV-1488-3-ST
Manufacturer: Cisco-Eagle
Mix slow and fast-moving items in the same storage footprint with pallet rack carton flow. With overhead pallet storage, bulk quantities can be stored above and are easily transferred to flow storage later. Placed along a conveyor line or used with cart-based picking, flow racks provide a solid wall of first-in, first-out pick faces. Whether you need a bay or two of flow storage or a long row of gravity-flow pick faces with pallet storage above, rack-mounted flow storage is flexible, efficient and reconfigurable—add, move, or remove flow shelves when you want, all within your pallet rack bays. Includes gravity roller conveyor the full width of the bay.
Includes gravity roller conveyor in front of pick faces
Conveyor is installed directly above the floor-level flow shelf and directly
below the middle shelves for easy picking and packing without bending or
stretching. The conveyor can also be used to move debris, bins, packing
materials and other non-product items from picking areas. Powered conveyors, or
conveyors of different sizes are also possible with this design. We can
customize this unit to fit your needs; whether that means lengthening or raising
the conveyor, adding a curve, or using different sized rollers. Simply contact
us and we will be more than happy to configure a gravity flow pick module that
works for you.
Why carton flow?
Rack ships with all beams, uprights, connectors, and flow tracks needed
to create a carton flow rack with overhead pallet storage
Flow system works for each-pick and carton-pick applications, giving you operational flexibility
A high degree of selectivity means you can access pallets and totes easily
Takes advantage of the vertical cube; carton flow concentrates many pick faces into very little floor space
Flow storage increases picking speed and efficiency because it reduces aisles and walking—pickers spend more time picking orders, less time walking to bins
You can replenish stock from the back while picking continues at the front. Restocking speed can be tripled vs. static shelving
Low-Profile carton flow track nests between the front and rear upper pallet rack beams by use of hangers, providing full use of vertical space and smooth carton flow
High profile carton flow tracks are utilized below the conveyor line
To ensure stability and integrity, assembled pick modules should be anchored to the floor upon installation
Assembly notes:
SBRUM400-96 beams are to be used for flow levels and pallet storage level(s)
SBRUM350-96 beams are to be used at center bottom of rack to stabilize and strengthen rack
RTFAP042096 pallet frames provide the support framework of the rack
RSR3G012 spacers keep a consistent space between the rack frames at top and bottom
