Low Profile Structural Channel Beam Hanger - 12"W, for 3" Beam
Connect Low Profile Span Track Sections to your Racking
SKU: 98H3-12
Manufacturer: Unex
Hanger includes built-in label holder, labels, and end cap. Please check your beam style and measurements before ordering. This hanger works as either a front or back hanger for low profile carton flow Span-Track. Two hangers are required for each track section ordered. Beam dimensions should read as labeled, and as follows: Thickness (overall beam thickness): 1-7/16". If you need assistance deciding which hanger will work with your beams, contact us.
- Beam Type: Structural 4.1# Channel
- Track Width: 12"
- Beam Size: 3"
- Weight: 0.8 lbs. ea.
Click on the thumbnails to see a larger image below.
 |  |  |  |  |  |  |  |
 |  |  |  |  |  |  |  |
 |

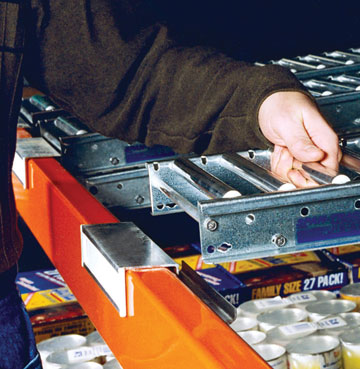

Span Track Low Profile Carton Flow features easy installation - it nests between rack beams.
Installation
To install tracks onto hangers, place one set of hangers on front and rear beams - do not force or hammer hangers onto beams. Add track in position onto hangers. Then, test the pitch. Product identification labels are included, (1) per hanger. Slide into the label holder front of the hangers. Two end caps are included with each hanger to complete the installation.
Hangers are used to connect low profile tracks to beams
We cannot typically accept orders for hangers without an order for flow tracks. Minimum order quantities may apply due to manufacturing restrictions. If you need assistance deciding which hanger will work with your beams, contact us. We can also provide beams and hangers to match exactly with your existing uprights.
