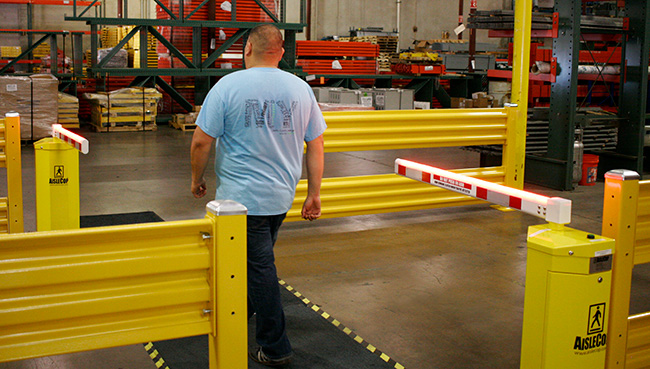

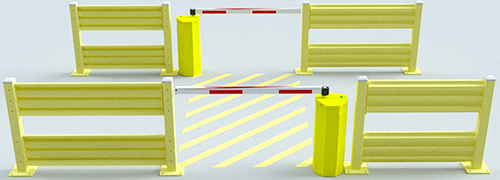

AisleCop Dual Pedestrian Gate System

• Height: 39.5"
• Color: Safety Yellow
• System Type:  Automatic Dual Pedestrian
• # of Gates:  2 Pedestrian Gates
• Pedestrian Gate Width (Closed):  54-3/8"
• Pedestrian Gate Height:  39-1/2"
• Pedestrian Gate Swing Radius:  47-3/8"
• Pedestrian Gate Depth (Open):  57-5/18"
• Pedestrian Gate Open/Close Time:  2.3 Seconds
• Per Gate Power Consumption:  65W
• Ped. Gate Motor Voltage:  115 VAC
• Ped. Gate Internal Control Voltage:  24 VDC
• Pedestrian Gate Weight - Lbs.:  147
• Ped. Gate Operating Temp. Range:  -4 to 140° F. (-20 to 60° C)
• System Components:  2 motorized, fully enclosed push button activated pedestrian gates with barrier arms (up to 40-1/2") and red flashing LED lights, 2 forklift motion sensors, 1 pedestrian sensor, control wiring enclosure with key lock panel, and PLC-based control package.
• Warranty:  Warranted free from defects in material and workmanship for one (1) year or 2 million cycles, whichever occurs first, under normal operating conditions when installed in accordance with Cisco-Eagle's installation instructions, normal wear and tear excepted
• Tested:  Prior to Shipment
• Weight: 300.0 lbs. ea.

Click on the thumbnails to see a larger image below.

3335

Loading...

• Motion sensors detect the presence of a forklift or other vehicle in the traffic lane
• Gates can be programmed to pedestrian priority (static state is gate open), or vehicle priority (static state is gate closed)
• When set for pedestrian priority, gates are open unless traffic is detected in the vehicle lane, upon which time, flashing lights and the audible alarm trigger, and the gates close. Gates remain closed until traffic is no longer detected in the traffic lane
• When set for vehicle priority, gates are closed until a pedestrian presses the button on top of the gate control box, triggering flashing lights and an audible alarm. If there is no traffic detected, the gates open. If traffic is detected, the gates remain closed until traffic is no longer detected in the traffic lane
• When set for vehicle priority, after opening, the gates will close after a programmed time delay unless sensors detect pedestrians remaining in the crosswalk
• Pedestrian gates will refuse to open anytime a vehicle is detected in the traffic lane, even if pedestrian has pressed gate button to activate gate opening
• The pedestrian gates may be manually opened or closed using moderate pressure in the event of a power outage
• Installation not included. System tested prior to shipping. Buyer responsible for wiring electricity to the control box
• AisleCop systems are safety tools that help define and control access to forklift aisles. They do not provide 100% protection from industrial traffic accidents. AisleCop gates do not stop forklifts or other industrial traffic. Other critical factors, such as system maintenance, drivers and pedestrian compliance, enforcement of crossing lanes, and assessment of safe crossings are the responsibility of individuals and companies

California Proposition 65

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer and reproductive harm.  For more information – www.p65warnings.ca.gov.

• AisleCop® Brochure (272 KB, PDF, Opens in new window)
• AisleCop® ROI (171KB, PDF, Opens in new window)

Lead Time: 10 weeks + transit time

Contact Cisco-Eagle to get a Shipping Rate for this item
