Overhead Door Monitor - Basic Single Sensor

Alert forklifts of traffic on other side of high-speed or strip doors

View Larger Image

SKU: STY-ODMBS

Manufacturer: Collision Awareness

This single light sensor system helps alleviate collisions at high-speed, strip or overhead doors with two-way traffic patterns. The motion sensor is placed on the side of the door where traffic has the right of way, and the light box is placed on the yielding traffic side of the door. The yielding traffic lane is warned of oncoming vehicles or pedestrians before entering doorway. Light box has 1 large warning light with bright red LED display. Includes 1 large light box, 1 sensor w/ 3' of wiring, and electrical cord with 110V to 24V DC plug-in wall transformer that goes into a 110V receptacle. Cord length options are available below. If you wish to hardwire the sensor into your electrical system choose the Universal Transformer option.

Cord Length (required)

15 ft. Cord

25 ft. Cord [Add $5.41]

50 ft. Cord [Add $15.57]

75 ft. Cord [Add $35.68]

100 ft. Cord [Add $50.10]

Universal Transformer [Add $37.19]

Alarm Option (optional)

STY-AUDIBLE – Audible Alarm [Add $100.91]

Audible Alarm option is added to the bottom of the particular sensor you are ordering. A switch is included so you can turn the audible alarm on or off as needed.

Its compact size keeps it from getting bumped, knocked off, or crushed. Despite the small size, it puts out an easily heard alarm. Recommended for settings with bright light where workers may need additional attention to the visual alert.

Option is only available at time of placing sensor order. Cannot be purchased separately.

STY-WALLBURST – Visual Alarm [Add $169.38]

Wall Burst Visual Alarm option is added to the bottom of a yellow wall-mounted warning box. When sensors detect oncoming traffic and trigger an alert, a bright red pulsating light is projected onto the wall underneath the box for enhanced visibility.

Option is only available at time of placing sensor order. Cannot be purchased separately.

Summary

Base Price:

$552.72

As Configured:
$552.72

Quantity

Inquire

Options Selected

Cord Length : 15 ft. Cord

Features:

Low voltage system with energy efficient LED lights in bright red
Versatile motion sensor system enclosed in safety yellow detector box
Perfect for overhead doors accessing other areas of warehouse
Detects motion on one side of overhead door and alerts traffic on other side of door
Silent operation does not distract other workers; optional audible alert may be added
Increases facility safety

Use:

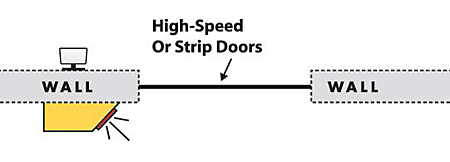

Sensor box is mounted on one side of wall next to overhead door and box with bright flashing LED light is mounted on other side of wall with wiring running through a hole between the two boxes.

Lead Time: 1 week + transit time
Door Type: Overhead Door
Warning Lights: 1 large
No. of Boxes: 1 indoor
No. of Sensors: 1
Sensor Range: 35' out and 20' to each side at full outward range, with 90 degree minimum arc
Wiring: Includes 110V to 24V DC plug-in wall transformer. Universal Transformer available upon request if doing a conduit (hard-wire) installation or for 277V or 240V DC.
Languages: All warning labels are in English. Spanish is available upon request.
Flash Timing: Switch included to select between 30 seconds, 4-6 seconds and 15 seconds
Weight: 6.0 lbs. ea.

Collision Awareness Catalog (957 KB PDF, opens a new window)
Overhead Door Monitor Diagram (26.1 KB PDF, opens a new window)
Warehouse Sensor Diagram (1.10 MB PDF, opens a new window)
Collision Sensor Features & Benefits (444KB PDF, opens in new window)
