Low Profile Semi-Auto Stretch Wrap Turntable, 600 Series - 93"L x 60"W x 87"H
Help improve the quality of pallet shrink wrapping for shipping or storage
SKU: SWM-SA-0600
Manufacturer: Handle-It
The semi-automatic turntable stretch wrapper 600 Series helps reduce labor costs while streamlining packaging operations. Operators simply load the pallet onto the turntable, attach the stretch wrap, select the correct parameters for the load and start the machine. Once the wrap is in progress, workers are free to go about more important tasks. The user-friendly electronic printed circuit board stores different programs, so users don't have to set parameters every time. The film tension is manually set so that it can be adjusted to the desired tension for whatever is being wrapped. 600 Series stretch wrappers come standard with a braked turntable to stop pallets in the same position they started. Loading ramps and factory installed scales are available below in the accessories tab. Please note that adding a scale means the machine cannot be floor mounted.
$6,621.43
- Width: 60"
- Height: 87"
- Length: 93"
- Profile: Low
- Size: 59" Turntable, 93"L x 60"W x 87"H
- Type: Semi-automatic, without pre-stretch
- Capacity: 3000 lbs.
- Pre-Stretch: No
- Wrap Height: 86"
- Turntable Diameter: 59"
- Max Pallet Size: 85" Diagonal
- Turntable Height: 3"
- Manual Film Tension: Variable
- Power Supply: 110v, 10 amp
- Turntable Speed: 3-12 RPM
- Auto Film Cut: No
- Weight: 600.0 lbs. ea.
Combine Your Purchase With
Click on the thumbnails to see a larger image below.
 |  |  |  |

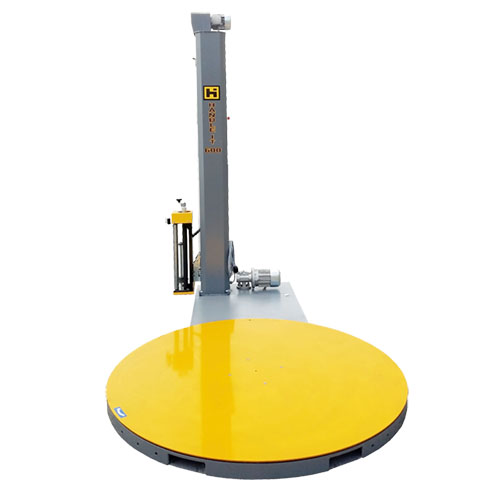

Handle-It 600 Series Front View
Features
- Electronic printed circuit board for control of the cycle
- Frequency controller for turntable speed adjustment
- Frequency controller for carriage speed adjustment
- Mechanical brake for film stretching
- Photocell for pallet height detection
- Safety stop at the base of the carriage
- Stop at home position
- Power board IP54
- 5 digit display
- 2 access keys
- Adjustable parameters by control panel: cycle selection, bottom turns, rotation speed, carriage speed (up and down), photocell delay
- 2 working cycles: up and down, only up
- 3 programs can be saved
- 2 working modes: semi-manual, semi-automatic
- Audible warning at cycle start and stop
- Powder coat finish
- Braked turntable at the end of the cycle
- Brochure (933KB PDF, opens in new window)
Lead Time: 1 to 2 weeks + transit time
Contact Cisco-Eagle to get a Shipping Rate for this item
3 Year
