Rack Safety Strap for Pallet Bays - for Teardrop or Slotted Rack

Safeguard workers and products from pallet loads falling off the back of pallet rack or down into flue spaces

View Larger Image

View More Images

SKU: BN-RSS

Manufacturer: Adrian's Safety Solutions

Rack safety straps help prevent goods from falling or being pushed over the edge of pallet rack into the flue space or into work spaces or traffic lanes. Made of durable webbing material, the strap ends are finished with metal rack connectors that quickly and easily connect and disconnect as needed. Strapping allows up to 6" of overhang on rack. Available for 8 ft., 8.5 ft., 9 ft., 10 ft., 12 ft. and 13 ft. rack bays.
Custom sizes available upon request.

$18.85

Inquire

Images

Click on the thumbnails to see a larger image below.

Specifications

Width: 2"
Capacity: 2,400 lbs. each
Color: Yellow
Style: Safety Strap - Pallet Bay
# of Straps: 1 Strap
Rack Type: Teardrop or slotted
Overhang Allowed: 6"
Available Bay Widths: 8 ft., 8.5 ft., 9 ft., 10 ft., 12 ft., 13 ft.
Construction: Full bay width 2" safety webbing straps with metal rack connectors
Weight: 1.0 lbs. ea.

Description

Recommended use:

Plan to install 3 rack safety straps per rack bay for best results and safety. Place lowest strap at a low height so that it retains pallets themselves, then space remaining 2 safety straps evenly with top safety strap below topmost height of pallet load.

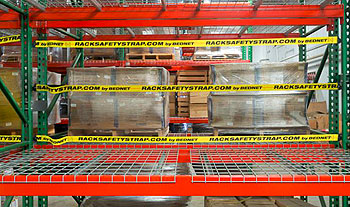

three safety straps installed in a rack bay

Straps allow up to 6" of overhang on the pallet rack at the back of the rack assuring pallets can be fully inserted into the rack bay.

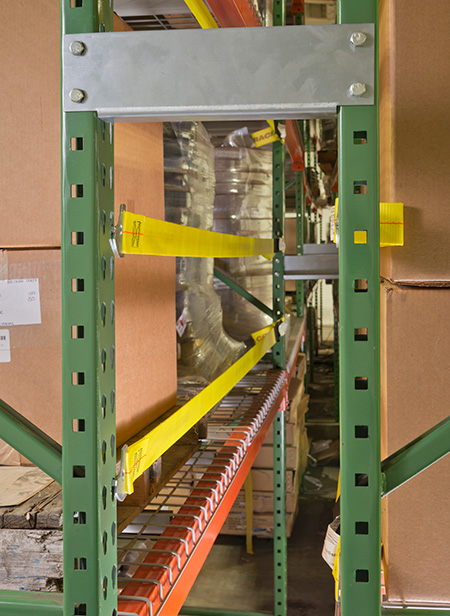

Rack Safety Straps x 3 used at back of rack bay

How to measure:

Measure the beam length from the inside of one upright to the inside of the other using a tape measure or laser meter. Make sure to measure in inches and be as precise as possible. Even though most rack manufacturers use standard beam sizes, sometimes they vary slightly, and even a small variance could affect how your safety accessories perform. If you're not sure which size you should choose, just contact us with your exact measurements. We're happy to help make sure you end up with the right size.
