Semi-Automatic Table Top Strapping Machine

Economical, low-maintenance carton strapper with quiet operation

View Larger Image

View More Images

SKU: BER-SP11

Manufacturer: Berran Industrial Group

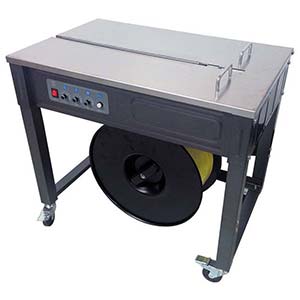

The Eagle SP11 is a versatile and economical solution for strapping cartons or other packages. Since there's no top arch, it can handle bulky and oddly shaped items. The operator positions the package on the table top and pulls over the poly strapping, which the machine tensions, cuts, and heat seals. Unlike many machines which can only use a specific strapping size, the SP11 takes any width from 6mm to 15mm. The machine runs very quietly with two direct-drive motors, and it has four locking casters so you can move it around your facility as needed.

Specifications

Width: 22"
Height: 30"
Length: 30"
Machine Type: Semi-Automatic
Table Top: 30"L x 22"W stainless steel
Table Top Height: 29.5"
Strapping Size: 6-15mm
Strapping Core Size: 8" x 8"
Strapping Speed: 20 straps per minute
Power Supply: 110vac/60Hz
Strapping Tension: 0 to 110 lbs.
Weight: 300.0 lbs. ea.

Images

Click on the thumbnails to see a larger image below.

View of motors and internals of Eagle SP11

Description

Features

Dual direct-drive 24 volt motors. Without the need for belts and pulleys, the machine operates very quietly.
Safety switch. The power cuts off automatically when the lid is open.
Four locking casters. Wheel the machine between work areas as needed then lock the casters for stationary operation.
Adjustable leg height. The operator can choose the most comfortable working height.

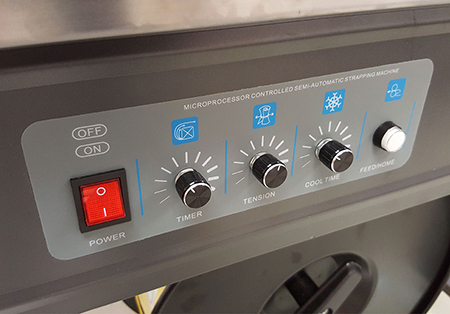

Electronic tension control. The lack of manual spring-based hand crank makes tension adjustment effortless.
Overall simple design. Fewer moving parts means easier operation with less maintenance required.
