Robotic Palletizing System - AX Series, 108" Pallet Height
Automate the orientation of loads on pallets for a safer work environment and higher throughput
SKU: AX-Series
Manufacturer: Robotiq
With a palletizing height of up to 108", the AX series system automates the placement and orientation of larger loads on pallets, achieving a rate of up to 13 boxes per minute. By speeding up your palletizing process and helping to make it safer and more ergonomic for your employees, it helps you respond to increased customer demand and keep your team injury-free. Complete system includes everything you need to automate palletizing in a small footprint that works with your existing space.
- Max Load Height: 108"
- Throughput: Up to 13 boxes per minute
- Approximate Payload Capacity (with Gripper): 28 lbs
- Estimated Price: Starting at $145,000
- Minimum Box Size: 2"W x 2"D x 2"H
- Pallet Dimensions: 12-48"W, 12-48"D; minimum 2"H
- Number of Box Patterns: 2 maximum
Click on the thumbnails to see a larger image below.
 |  |  |  |  |  |  |  |
 |  |  |  |  |  |  |  |
 |  |  |

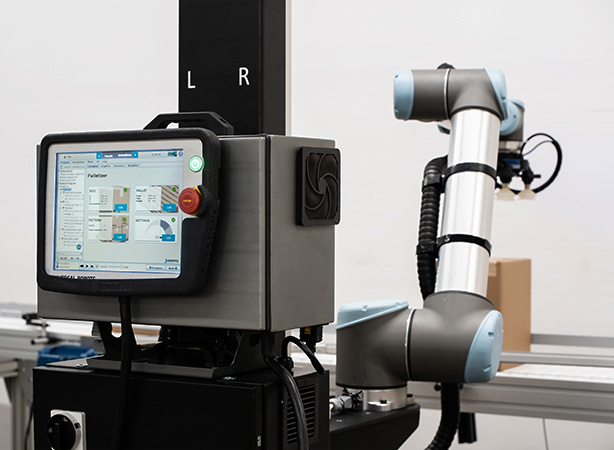

Controller is integrated on the vertical axis
What's included?
The price shown is an estimate based on these components:
- Robot with base and recommended accessories
- Gripper, bracket and suction cups
- Application software
- Cable management system
- Vertical axis and teach support pendant
How do I program it?
The system automatically generates the best trajectories for each movement of the robot. All you need to do is enter the box dimensions and weight and the pallet dimensions, then set the pallet pattern. Most programs can be set up in just a few minutes, allowing your team to spend more time on other tasks.
- Brochure (1.3 MB PDF, opens in new window)
- Instruction Manual (6.9 MB PDF, opens in new window)
- Electrical Schematics (2.4 MB PDF, opens in new window)
- Safety Considerations (436 KB PDF, opens in new window)
