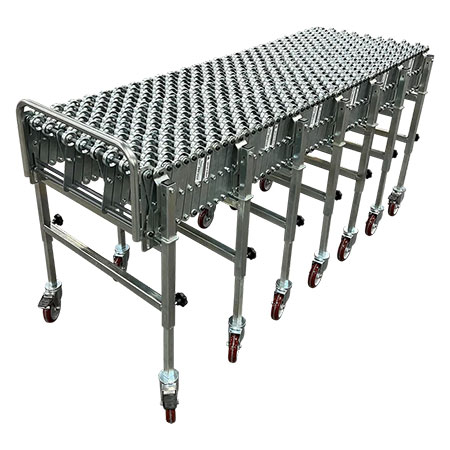

Flexible Gravity Skatewheel Conveyor - 24"W, 5' 2" to 20' 7"L, Galvanized Wheels, 300 lbs Cap.
Self-tracking conveyor extends and bends around obstacles
SKU: FLX24X9GWPAX20-7
Manufacturer: Ashland Conveyor Products
Skatewheel conveyor is an economical, highly versatile solution for moving totes, cartons, cases, and other loads with rigid, flat bottoms. Since gravity powers the conveyor, you never have to worry about a power supply— just roll the conveyor to where it's needed. In a crowded warehouse, this flexing conveyor can move loads around corners and obstacles with self-tracking product flow, and it collapses to a compact length for easy transport and storage. Flexible conveyor is an ideal choice for shipping and receiving, as well as manufacturing and fulfillment applications.
$3,730.07
- Width: 24"
- Length: 5' 2" to 20' 7"
- Wheel Type: Galvanized steel
- Adjustable Height: 28" to 43"
- Extended Axle Centers: 5.25"
- Collapsed Axle Centers: 1.3"
- Wheels per Axle: 9
- Wheel Capacity: 65 lbs.
- Conveyor Capacity per Foot (Extended): 300 lbs.
- Casters: 5" swivel casters; brakes on end sets
- Minimum Flexed Inside Radius: 30"
- Weight: 355.0 lbs. ea.
Click on the thumbnails to see a larger image below.
 |  |  |  |  |  |  |  |
 |  |  |

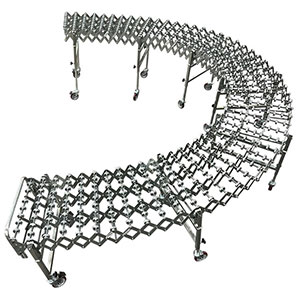

Flexible conveyor collapses to be very compact, so it requires minimal storage space
- Ashland Flexible Skatewheel Flyer (683 KB PDF - opens in new window)
- Ashland Flexible Skatewheel Manual (2.07 MB PDF - opens in new window)
Lead Time: 7 to 10 days + transit time
Weight: 355.0 lbs. ea.
Get Shipping Estimate
Country:
Zip:
One year manufacturer's warranty against defects in material and workmanship
