Wire Mesh Belt Conveyors

Improve airflow and drainage with open-mesh belt conveying

Move parts through cooling, drying, and production processes

Wire mesh belt conveyors move parts and materials through manufacturing and processing operations. Their open belt construction allows air and liquids to pass through, making them useful for cooling, drying, washing, and rinsing applications.

Why use a wire mesh belt?

The open belt surface lets air and liquids pass through the conveyor, making wire mesh a useful choice for processes where solid belts may restrict airflow or drainage.

Airflow: Lets air circulate around parts during cooling and drying to help maintain airflow throughout the process.
Drainage: Allows wash water and other process liquids to drain through the belt.
Versatility: Handles hot, cold, wet, or oily parts across a variety of processes.

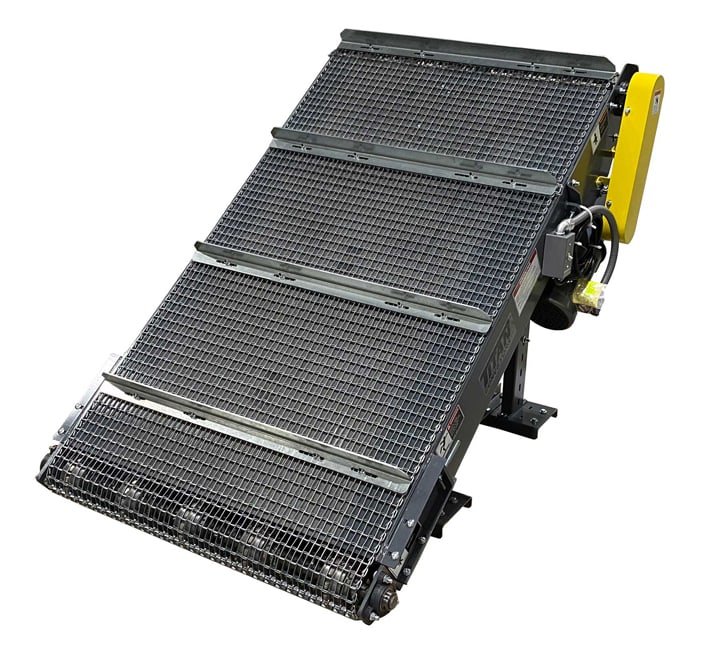

Close-up of an open wire mesh conveyor belt

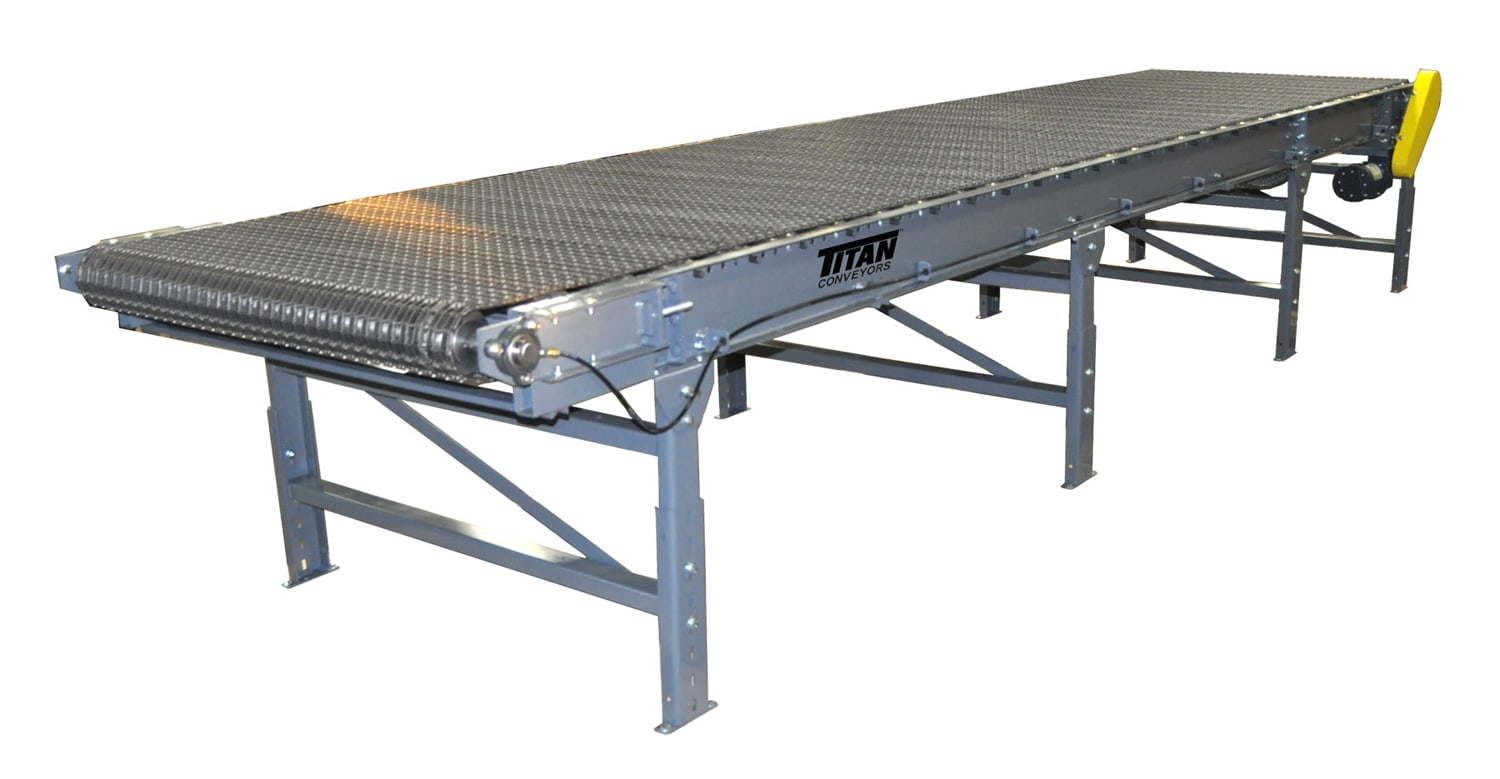

Model 124 wire mesh belt conveyor

The Model 124 handles hot, cold, or oily products and parts that need cooling or drying. Roller-bed and longitudinal-deck configurations are available to accommodate different loads and conveying requirements.

Roller bed: Supports products over longer conveying distances.
Longitudinal deck: Leaves the belt area open to support airflow around parts.
Wear strips: Offers different wear-strip materials to suit the application.

Model 305 wire mesh parts conveyor

The Model 305 is a heavy-duty inclined conveyor for moving parts through heat treating, washing, drying, and quenching processes. Its side rails help contain parts as they travel along the belt.

Wire mesh belt: Lets air and liquids pass through as parts travel along the conveyor.
Side rails: Help keep parts contained as they move along the inclined belt.
Inclined conveying: Transfers parts between different heights in the production process.
Adjustable supports: Allow conveyor height changes to suit the installation.
Portable option: An available undercarriage makes it easier to move the conveyor when needed.

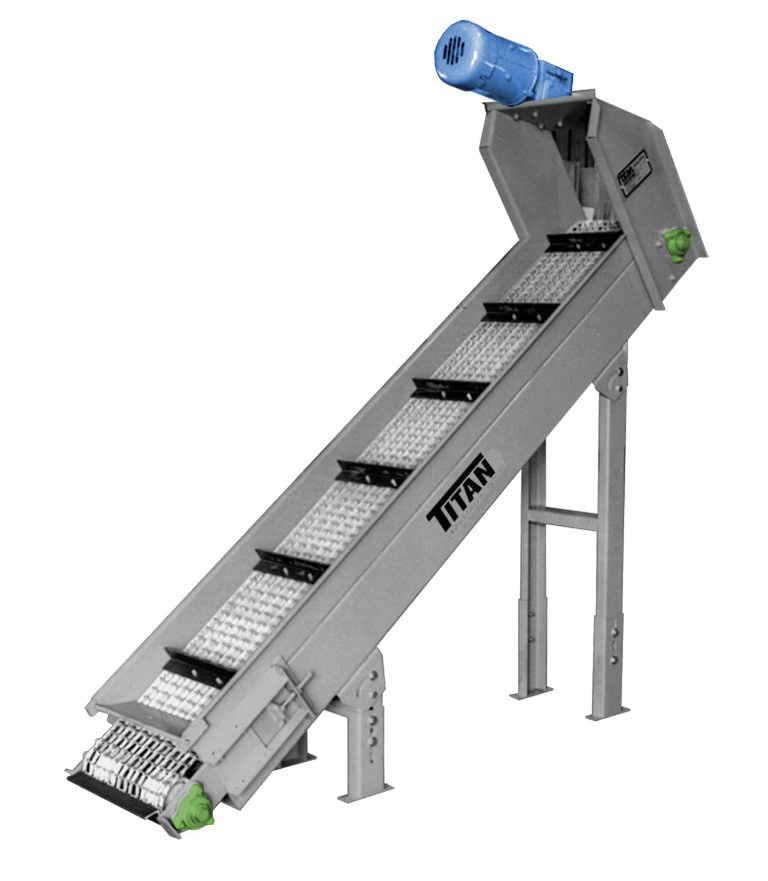

Titan Model 305 inclined wire mesh parts conveyor

Cooling, drying, and conveyor integration

Wire mesh conveyors can support several stages of production, from post-process cooling to parts washing and drying.

Application	Description
Cooling	Carries hot die castings and other parts through a cooling stage after manufacturing.
Drying	Moves washed parts through drying stages to help remove remaining moisture.
Conveyor integration	Connects cooling and drying equipment with the rest of an existing conveyor system.
Other belt options	Some applications may call for hinged steel belt or slat belt conveyors instead.

Find the right wire mesh belt conveyor

The right conveyor depends on the products being moved, the conveying path, and whether your process requires cooling, drying, washing, or inclined conveying. Belt style and conveyor construction can be matched to your application.

Contact Cisco-Eagle to discuss your material-handling needs and determine which wire mesh belt conveyor may be the right fit for your operation.
