Roller Bed Incline Conveyors

Double nose-over, incline/decline belt conveyor

Get Quote

Unsure of what size you need? Use our Incline Conveyor Calculator to find the dimensions you need.

Filter By:

Sort By:

Products per page:

Viewing Page 1 of 4

Page: 1 2 3 4 >>>

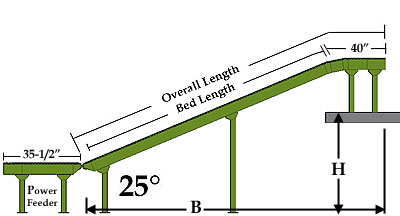

Model No.	Overall Width	Height (H)	Length (B)	Bed Length	Overall Length	Price
35.20.18.14	18"	4'-11"	12'-8"	10'	13' 10"	$8,573.77
35.20.24.14	24"	4'-11"	12'-8"	10'	13' 10"	$9,129.43
35.20.30.14	30"	4'-11"	12'-8"	10'	14'	$10,009.42
35.20.18.16	18"	5'-8"	14'-7"	12'	15' 10"	$8,924.63
35.20.24.16	24"	5'-8"	14'-7"	12'	15' 10"	$9,524.52
35.20.30.16	30"	5'-8"	14'-7"	12'	16'	$10,447.59
35.20.18.18	18"	6'-4"	16'-5"	14'	17' 10"	$9,108.34
35.20.24.18	24"	6'-4"	16'-5"	14'	17' 10"	$9,751.32
35.20.30.18	30"	6'-4"	16'-5"	14'	18'	$10,718.62
35.20.18.20	18"	7'-2"	18'-3"	16'	19' 10"	$9,292.05
35.20.24.20	24"	7'-2"	18'-3"	16'	19' 10"	$9,979.25
35.20.30.20	30"	7'-2"	18'-3"	16'	20'	$10,990.78

Model No.	Overall Width	Height (H)	Length (B)	Bed Length	Overall Length	Price
35.20.18.14	18"	4'-11"	12'-8"	10'	13' 10"	$8,573.77
35.20.24.14	24"	4'-11"	12'-8"	10'	13' 10"	$9,129.43
35.20.30.14	30"	4'-11"	12'-8"	10'	14'	$10,009.42
35.20.18.16	18"	5'-8"	14'-7"	12'	15' 10"	$8,924.63
35.20.24.16	24"	5'-8"	14'-7"	12'	15' 10"	$9,524.52
35.20.30.16	30"	5'-8"	14'-7"	12'	16'	$10,447.59
35.20.18.18	18"	6'-4"	16'-5"	14'	17' 10"	$9,108.34
35.20.24.18	24"	6'-4"	16'-5"	14'	17' 10"	$9,751.32
35.20.30.18	30"	6'-4"	16'-5"	14'	18'	$10,718.62
35.20.18.20	18"	7'-2"	18'-3"	16'	19' 10"	$9,292.05
35.20.24.20	24"	7'-2"	18'-3"	16'	19' 10"	$9,979.25
35.20.30.20	30"	7'-2"	18'-3"	16'	20'	$10,990.78

Sort By:

Products per page:

Viewing Page 1 of 4

Page: 1 2 3 4 >>>

Model RBI is a floor-to-floor incline conveyor

The RBI is equipped with a chain driven power feeder and an adjustable double nose-over at the discharge end to insure a smooth transfer from incline to horizontal plane. The RBI conveyor, with rollers, carries higher load capacities than the SBI conveyor. Inclines are easily adjusted up to 30 degrees. This conveyor can also be used as a booster conveyor in gravity flow systems.

Move products between floors, from floors to mezzanines, or to overhead conveyor lines
Medium duty frames hold up to 1250 lb.; evenly distributed load and 225 lb. per linear foot
Inclines move at a standard 65 feet per minute, to ensure that a choke point is not created
Our complete incline conveyors come complete with motor, reducer, brakes, supports, and lower horizontal feeder section
Motors are reversible, reducing downtime if products need to be taken off

RBI Specifications 635 KB PDF, opens a new window

Width

Belt conveyor width is measured in two ways; overall width (or bed width) and belt width. Overall width includes the width of the frame, which extends 3" to either side of the belt. This means that the belt width would be 6" less than the overall width of the conveyor. Keep this in mind when determining what width of conveyor you need to meet your package requirements.
