Weld Tuff Screen - Single Panel, 6' W x 6' H

Prevent eye damage and contain sparks with sturdy welding screens

View Larger Image

View More Images

SKU: GF34742

Manufacturer: Goff's Enterprises

Ultraviolet and near ultraviolet light is very damaging to the eye, especially at the intensity of a welding arc. This 6' W x 6' H single panel screen, mounted to a lightweight aluminum frame, blocks 100% of UV light and reduces total light exposure, making the work place safer for personnel near welding operations. Even with weld screen in place, welding arc should NOT be looked at directly without additional eye protection.

$337.02

Inquire

Specifications

Width: 6 ft.
Height: 6 ft.
Color: Choose
Size: 6' W x 6' H
Materials: OSHA approved weld-spatter resistant 14 mil "Weldview" tinted PVC
Frame: 1- 3/16 in. aluminum
Light Transmission: Yellow- 90%, Red- 85%, Blue- 70%, Green- 20%, Grey- 15% (all percentages approximate); Blocks 100% of UV light
Safety Standards: Meets CPAI-84 and California Fire Retardance Test
Includes: 1- "Weldview" screen, aluminum frame with legs
Warranty Details: Warranted from failure in normal use due to defects in material or workmanship for a period of five years from date of purchase. Lifetime warranty on frames. Manufacturer may elect to repair or replace defective or damaged goods.
Weight: 21.0 lbs. ea.

Accessories

Combine Your Purchase With

Caster Kit

$64.75

Qty:

Hinge Kit

$46.23

Qty:

Corner Cover

$17.53

Qty:

Images

Click on the thumbnails to see a larger image below.

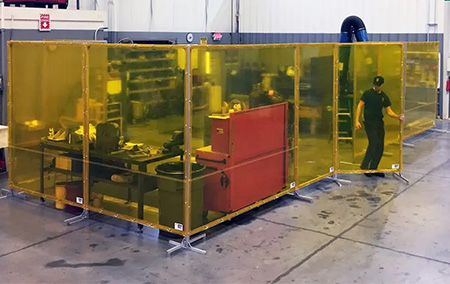

Weld screen enclosure to protect other workers from exposure to eye damaging welding arc

Close up view shows weld arc light filtered by the weld screen

Description

Translucent weld screen is 14 mil thick weld view PVC with 100% UV light blockage
Weld-spatter resistant screen is easy to assemble and very durable - Won't wobble or bend
Special under-over leg design allows adjacent panels to be placed at sharp angles and makes setup quick and easy
Corrosion resistant 1-3/16" extruded aluminum frame with grommet and button-head screw mount
Finished hems on all sides
CPAI-84 & California State Fire Marshall Code approved
OSHA approved
Accessories available: casters, corner covers and hinge kits
Custom sizes & colors available

All welding screens are available in the colors found in the table below. All light transmission percentages are approximate. Welding screens block 100% of UV and near UV light.
