Scissor Lift - 48" x 72", 84" Travel, 6,000 lb. Cap.
Lift higher with more stability because of double pantograph design
SKU: DPL-084-0060
Manufacturer: Autoquip
One of the most reliable and most stable high travel lifts, this double pantograph lift has a small footprint and platform, yet delivers consistently. Choose this model when you need to move heavy loads higher for integration with conveyor systems, elevation up to mezzanine height or second level storage. A very effective and economical answer for lift applications with travel up to 84 inches and a load capacity of 6,000 lbs. Made in the USA. Custom sizes available upon request.
- Color: Choose
- Capacity: 6,000 lbs.
- Travel Distance: 84"
- Lowered to Raised Height: 16" to 100"
- Standard Platform Size: 48" x 72"
- Max Platform Size (Upon Request): 60" x 96"
- Max End Load (Standard Size Platform): 4,500 lbs.
- Max Side Load (Standard Size Platform): 2,000 lbs.
- Raising Time: 42 sec.
- Lowering Time: 42 sec.
- Power Unit: 5 HP
- Weight: 2000.0 lbs. ea.
Click on the thumbnails to see a larger image below.
 |

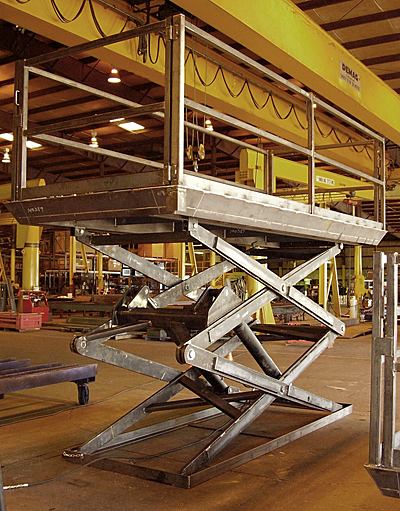

Double pantograph scissor lift during completion
This hydraulic lift comes standard with two piece self-aligning cylinder, one-piece acle pins, and high impact spiral wound bearings for stable durability, and low maintenance operation.
Lifts with a clearance below the platform in excess of 66" will require guard rails.
Quality
- All scissors rollers are captured within structural steel channels to provide excellent load stability
- High impact, spiral wound bearings at every pivot point provide maintenance-free, rugged resistance to abrasion, impact, and uneven loads.
- Structural cross-members at every pinned joint in the scissors assembly minimizes leg deflection due to twisting or spreading under high/uneven loading.
- All hydraulic cylinders contain two-piece, self-aligning piston rods that transmit minimal side forces to the cylinder hinges/pins, significantly reducing wear.
- Structural steel channels in all top and lower frames provide additional rigidity and resistance to twisting/bending of the lift under load.
- Solid steel legs and added stiffeners provide overall stability and straight, repeatable roller tracking as the lift raises and lowers.Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life.
- Minimum 1/4-inch-thick steel-reinforced platform minimizes deck deflection, maximizes load stability, and greatly extends the life of the platform deck.
Maintenance & Warranty
- Autoquip offers an industry-best 2 year warranty on all parts as a promise that you've purchased the industry's most reliable scissor lift.
- One-piece, removable center axle pin adds rigidity to the scissors mechanism and allows easy inspection and maintenance of the axle pin - a task that is virtually impossible on competing brands.
- On-board maintenance devices enable maintenance crews to safely and effectively block open the scissors during inspection and routine maintenance.
- Sturdy, semi-transparent polyurethane oil reservoir provides an easily visible method of checking fluid levels and eliminates oil contamination due to rust.
- Low pressure hydraulic circuit extends the life of all hydraulic components and puts less stress on the electric motor.
- Double wire braided Parker hydraulic hoses resist wear, abrasion, and leaks.
Easy Operation
- Standard controls are prewired and internal power unit is onboard. Installation simply includes lagging the unit to the ground and connecting to electricity.
Safety
- Hydraulic velocity fuses completely stop lifts in the unlikely event of uncontrolled descent due to sudden hose rupture.
- Minimum 3:1 structural factor of safety makes these lifts the most structurally sound lift in the industry.
- Compliance with recognized standards:
- ANSI MH29.1 - Safety Requirements for Industrial Scissor Lifts
- NFPA 70 - National Electric Code
- ASTM - A36 - Structural Steel Standard
- ANSI Z535 - Safety Labeling Requirements
- AWS D.1 - Welding Standards
- Applicable portions of OSHA 29CFR1910 - General workplace safety
Options
Platforms- Platforms with straight sides
- Remote air operated power unit. Requires 70 psi and 95 cfm and clean plant air. Includes hand valve, lubricator and 5' hose
- Guarded, NEMA 1, up/down foot switch, 24 volt (shipped loose)
- Upper/Lower Travel Limit Switch (shipped loose)
- Special outboard and inboard perimeter skirting. Please call for more information
- Portability set. Please call
- Fixed wheel transport base. Please call
- Custom colors available. Please call
