Perimeter Clamp 4-Pack
Create an economical and safe roof perimeter fall protection system with simple component parts
SKU: GL-301282
Manufacturer: Garlock
An economical way to add fall protection to roof edges, the Perimeter Clamp System uses simple components to create a sturdy fall barrier right at the parapet or roof edge. The clamps will fit edges from 8" to 24" and accept matching stanchions. Provide your own rails by using 2x4's to fit into the rail slots on the stanchions. Perimeter clamps should be spaced no more than 8 feet apart (recommended distance is 6 ft.) when using for rooftop fall protection. Purchase sufficient clamps and stanchions to adequately enclose all exposed roof edges at your work site. Sold in packs of 4 clamps.
$693.22
- Type: 4 Clamps & Stanchions
- Weight: 61.0 lbs. ea.
Click on the thumbnails to see a larger image below.
 |  |  |  |
The Perimeter Clamp fall protection system allows work all the way to the edge of the roof. It is cost effective and simple to use with uncomplicated components comprising clamps, stanchions and 2x4's.
Perimeter clamps fit on roof parapets that measure from 8" to 24" wide. The clamp has a receiver for the 42" stanchion which has (2) pockets which accept 2"x4" boards. These boards create the rails in this type fall protection system.

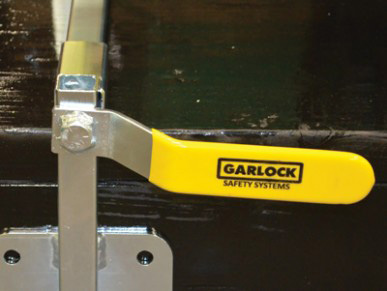

The clamps will also fit flat edge or slab edge buildings. No tools are required for installation. An ergonomic tightening handle is easy to use with concealed fastener threads, increasing clamp service life.
- Perimeter Clamp Fall Protection Brochure (2.0 MB PDF - Opens in new window)
- Drawing and Specifications (852 KB PDF - Opens in new window)
Lead Time: 1 to 2 weeks + transit time
