Pallet Load/Unload Turntable - 4,000 lb. cap., 43" disc

Easily load and unload without taking a step

View Larger Image

View More Images

SKU: PalletPalDisc

Manufacturer: Southworth

Low profile design makes this turntable easy to load and unload using a hand pallet truck. Load rotates so worker is always at the nearside without having to walk around load. Saves on worker fatigue, potential for injury and is more efficient way to palletize/depalletize.

Lead time may be temporarily extended. We will confirm your lead time upon order.

$1,618.57

Inquire

Specifications

Capacity: 4,000 lb.
Table Height: 7/8"
Table Diameter: 43"
Type: Manual
Overall Diameter: 48-3/4"
Tab Lock: Stops disc rotation during unloading
Weight: 250.0 lbs. ea.

Images

Click on the thumbnails to see a larger image below.

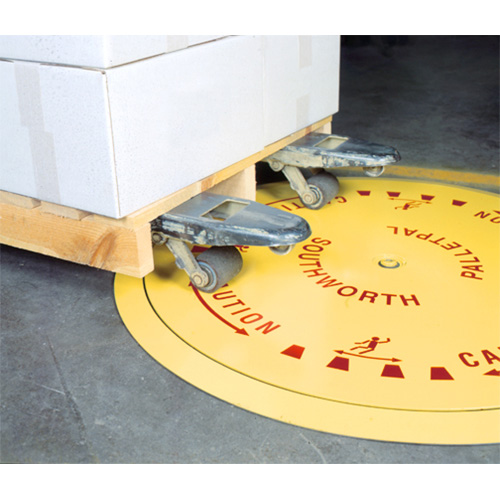

Pallet Turntable Being Loaded

Description

Rotating the load instead of wasting time and energy walking around the load to add or remove product removes the risk of injury from overreaching and stretching. The low profile turn table is low enough to place pallet on turntable using a hand pallet truck and is easy to relocate throughout facility. Additional features:

Compact design has low disc height for pallet jack accessibility
Baseplate is full diameter to maximize spread across load bearings for greater stability
Perimeter seal around turntable protects load bearings from dirt and foreign material
Oversized alloy center pin handles heavy duty loading and off loading
Center pin has unique dry lubricated Teflon line bushing for life-time lubrication and smooth, precise centering control
Includes one-year parts & labor warranty from manufacturer
