Rack Safety Straps w/ Fixed Mesh Panel - for Teardrop or Slotted Rack

Safeguard workers and products from pallet loads falling off the back of pallet rack or down into flue spaces

View Larger Image

View More Images

SKU: BN-RSB

Manufacturer: Adrian's Safety Solutions

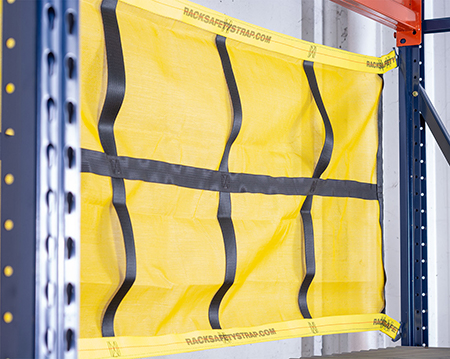

Quick and easy to install, fixed rack safety straps with mesh panels help keep large, palletized, or shrink wrapped goods from dropping into flue spaces or down into workspaces or traffic lanes. Top and bottom safety straps connect to tear-drop style pallet rack to stretch a bright yellow safety mesh panel across the back of the rack bay opening. No rack retrofit required, easy to remove for special situations, and available for 8 ft., 9 ft., 10 ft., 12 ft. and 13 ft. bays. Custom sizes available upon request.

$93.25

Inquire

Video

Specifications

Width: 32.5"
Capacity: 2,400 lbs. each
Color: Yellow
Style: Safety Straps w/ Mesh Panel
# of Straps: 2 Straps with Reinforced Mesh Panel
Rack Type: Teardrop or slotted
Overhang Allowed: 6"
Available Bay Widths: 8 ft., 9 ft., 10 ft., 12 ft., 13 ft.
Construction: Full bay width 3" safety webbing straps with metal rack connectors, mesh net fabric panel reinforced with dark webbing strips
Weight: 4.0 lbs. ea.

Images

Click on the thumbnails to see a larger image below.

Description

Recommended use:

Install rack safety straps with mesh panel at the back of rack bay for best results and safety. Place lowest netting restraining strap at a low height so that it retains pallets themselves, then stretch the rest of the remaining strap and mesh panel tight to connect strap ends to the pallet rack.

How to measure:

Measure the beam length from the inside of one upright to the inside of the other using a tape measure or laser meter. Make sure to measure in inches and be as precise as possible. Even though most rack manufacturers use standard beam sizes, sometimes they vary slightly, and even a small variance could affect how your safety accessories perform. If you're not sure which size you should choose, just contact us with your exact measurements. We're happy to help make sure you end up with the right size.
