Pallet Rotator/Inverter - 72" Max. Clamp Opening, 42" Min., 4,400 lb. Capacity, 180° Rotation
Change out a pallet without the labor cost of repalletizing
SKU: SR-44-72
Manufacturer: Southworth
Replacing a pallet is a seemingly small task—but it requires the multi-step, labor-intensive process of unpacking and repalletizing a load. A pallet rotator clamps down on a palletized load, inverts it so you can access the pallet or the contents at the bottom, then returns it to its original position. This decreases the labor involved with swapping out pallets, transferring to slip sheets or replacing damaged cartons near the bottom of the load. Multiplied over a week or month, those labor savings add up, combined with the benefits of improved ergonomics and safety.
$53,389.31
- Maximum Clamp Opening: 72"
- Minimum Clamp Opening: 42"
- Overall Dimensions: 108"W x 85"D x 94"H
- Capacity: 4,400 lbs
- Accepts Pallet Size (W x L): Up to 48" x 48"
- Clamp Speed: 2 ft/sec
- Power: 460/3/60
- Rotate Time (Clockwise): 18 seconds
- Rotate Time (Counter Clockwise): 15 seconds
- Controls: Pre-wired push-button stanchion
- Weight: 4000.0 lbs. ea.
Click on the thumbnails to see a larger image below.
 |  |  |  |

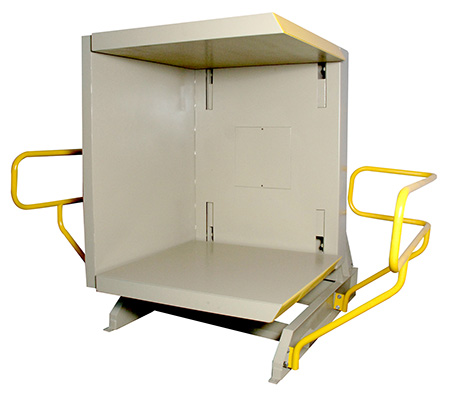

Pallet rotator unloaded
Features
- Beveled toeguards and safety railing keep workers away from moving components
- Adjustable clamp pressure allows you to keep loads more stable and secure
- Inverts a load in less than a minute, shaving time off common warehouse tasks like replacing a pallet
- A center-justified clamping mechanism uses two platens that both move toward the load, and guides help ensure even clamping; this helps keep the load in place without damaging pallets or product
- A high-cycled-rated hydraulic system minimizes the maintenance burden
- Anti-friction turret bearing can handle heavy loads for long-lasting, reliable performance
- The control stanchion is pre-wired and includes a 10' cord, giving you flexibility to use the unit where it's convenient (requires basic connection to a 3-phase power source)
- Specifications and Drawing (806KB, opens in new window)
- Owners Manual (2.58MB, opens in new window)
Lead Time: 2 to 9 weeks + transit time
Weight: 4000.0 lbs. ea.
