Modular Wire Barrier - Corner Post, 5' 3-1/4" h
Sturdy mesh barriers protect employees & equipment from automated machinery
SKU: CP5
Manufacturer: WireCrafters

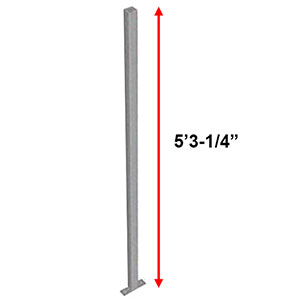

Post is 5' 3-1/4" h with bolt holes patterned to be used as an intermediate post in a run. Connect it with panels and gates to create machine guarding. Modular wire guards are a simple, effective way to protect employees and equipment from the dangers of robots and running conveyors; to control traffic in plants and warehouses; to segment off security areas; and to help prevent damages and injuries in a variety of other applications. The physical barrier is always on duty, unaffected by power outages or electrical problems.
$103.00
- Width: 2"
- Height: 5' 3-1/4"
- Length: 2"
- Color: Gray
- Type: Corner Post
- Dimensions: 2" x 2" x 5' 3-1/4"h
- Construction: 14 Gauge Steel Tubing
- Base Plate: 2" x 7" x 1/4" Flat Steel welded to post
- Anchor Points: (2) 7/16" holes in base plate for anchor bolts
- Attaching Panels: Posts are pre-drilled to accept hardware
- Finish: Gray acrylic enamel
- Weight: 18.0 lbs. ea.
Click on the thumbnails to see a larger image below.
 |  |  |  |  |  |
Guards people from moving machinery
Post is 5' 3-1/4" and constructed of 2" square 14-gauge steel tubing. Combined with 5' tall modular wire panel, they provide a barrier with approximately 3-1/4" underclearance (great for sweep space). Panels mount to posts with maximum 10' 2" centers.
Combine panels, posts, and gates to create a wire barrier that keeps areas segmented and still allows visibility and access to those who need it. It's easy to install with 1/2" wedge anchors. Once erected, barriers restrict access to a work cell, machining area, conveyor, or other automated equipment and prevents employees, visitors, or contractors from wandering into an area where injuries can occur or equipment can be damaged. Physical barriers will not interrupt robotic operations through mischievous or inadvertent contact, as may happen with light curtains or switchmats. The barrier doubles as a potential safety net by helping to contain objects thrown or ejected by a malfunctioning robot.
Finish: All parts are finished in gray enamel. Available with gray powder coat finish upon request at no extra cost (may extend lead time). Other colors are also available in powder coat for an additional fee; contact us for more information.
Hardware: All erection hardware is supplied with your order. Panel mounting hardware is standard thread 3/8" plated fasteners. Floor anchors are 3/8" wedge type.
Can be configured into 1, 2, 3, and 4-sided combinations, to fit virtually any space. Configuration Assistance is available by contacting Cisco-Eagle customer service.
Combine panels, posts, and gates to create a wire barrier that keeps areas segmented and still allows visibility and access to those who need it. It's easy to install with 1/2" wedge anchors. Once erected, barriers restrict access to a work cell, machining area, conveyor, or other automated equipment and prevents employees, visitors, or contractors from wandering into an area where injuries can occur or equipment can be damaged. Physical barriers will not interrupt robotic operations through mischievous or inadvertent contact, as may happen with light curtains or switchmats. The barrier doubles as a potential safety net by helping to contain objects thrown or ejected by a malfunctioning robot.Finish: All parts are finished in gray enamel. Available with gray powder coat finish upon request at no extra cost (may extend lead time). Other colors are also available in powder coat for an additional fee; contact us for more information.
Hardware: All erection hardware is supplied with your order. Panel mounting hardware is standard thread 3/8" plated fasteners. Floor anchors are 3/8" wedge type.
Configure the way you want it...
Can be configured into 1, 2, 3, and 4-sided combinations, to fit virtually any space. Configuration Assistance is available by contacting Cisco-Eagle customer service.
California Proposition 65
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and reproductive harm. For more information – www.p65warnings.ca.gov.
- Installation Instructions (7.12 MB PDF - opens in new window)
- Machine Guard & Safety Barrier Brochure (1.58 MB PDF - opens in new window)
Lead Time: 2 days + transit time
